SINO EV Charger-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.

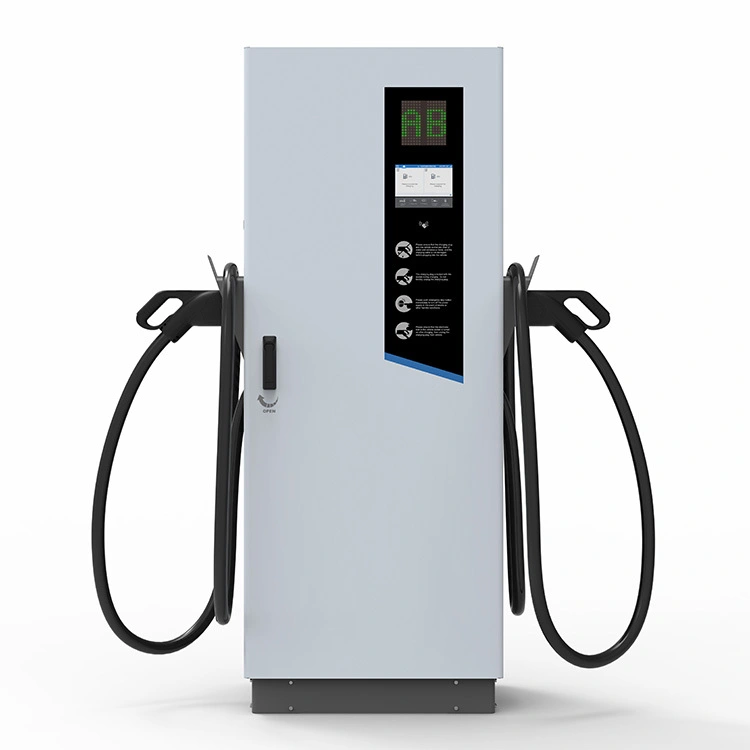

Floor Mounted DC EV Fast Charging Station For Electric Vehicles 60kW-240kW PEVC3107
| • 60kW-160kW rated power • CCS1, CCS2, GB/T, CHAdeMO • 7" Color Touch Screen • Multi Electrical Protection • Easy Maintenance through Modular design |
• Single Gun or Dual Gun • Emergency stop Switch • Various billing solutions • OEM/ODM/SKD supported • Site Map Charger Finding |
Fast Charging, Cost Saving
DC fast charger PEVC3107 delivering fast charging speeds ranging from 60kW-160kW with the capability of Simultaneously charging to two vehicles at the same time. it was designed for high-powered performance which keeps electric vehicles on the road in no time. Modular design of the EV charging stations realize Easy Maintenance during the public operation. It used commercial grade AC power which is converted within the power module into DC power to then distribute directly to the vehicle’s battery. Floor mounted DC charging stations are the ideal choice for locations where EVs must gain the maximum range in the shortest possible time.
High Intelligence, Smart management
PEVC3107 floor mounted EV charger is a high-power DC fast EV charger. Certified by OCPP, TUV, and CE, and EMI compliant with Class B, it offers a reliable and efficient charging experience for your EV. This DC fast charger optimize energy management across complex charging and commercial operations. The feature leverages the station sophisticated controls and communication abilities like OCPP 1.6J to remotely facilitate uninterrupted high-demand charging.The user-friendly LCD display ensures easy activation through Plug& Play, mobile App, or RFID card, perfectly tailored to meet commercial charging needs. Experience efficient charging up to 60kW-240kW, boosting revenue for businesses, it is the perfect solution for Public charging operators.
Main Features
Product display
SINO EV Charger offers 60kw DC fast charger, 240kw EV charger, OEM floor-mounted split DC EV charger and DC EV charging station solution, contact us for more information!
Model PEVC3107 60kW-160kW DC EV Fast Charger Are Ideal For Charger point operators
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 200A（250A Optional） | ||||||
| Rated Power | 60kW - 160kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 700mm*550mm*1800mm( W*D*H ) | ||||||
| Package Dimension | 950mm*720mm*1950mm( W*D*H ) | ||||||
| Weight | 363kg( Net ) / 380kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
