Wallbox Ac Charger - for Home Charging - SINO
Product details of the wallbox ac charger
Product Information
The continuously improved production management system guarantees the production process of SINO wallbox ac charger runs smoothly and efficiently. wallbox ac charger is a product which has many qualities and has a large assortment of applications it is suitable for. Free customized design solution is one of ZhuHai SINO energy technology Co.ltd's advantages.
AC EV charging from 3kW to 22 kW for residential
SINO Energy offers a variety of AC chargers with power ratings of 3.7 kW to 22 kW designed for residential application. It supports type 1/ type 2/ GB/T plug and can be installed by wall-mounting and floor-mounting, can be easy controlled by plug & Charge/RFID/APP. Having a home EV charger allows you to charge your electric vehicle overnight or in most convenient without waiting in line from public charging stations.
Charging Your Electric Vehicle at Home
The wall-mounted EV Charger stations are most used in private homes; you can park your car at the garage and manage the charging status with a dedicated application. Once you have connected, the wall-mounted EV charger will charge the car ideally, safely, and in a short time. Home charging station provides convenience, cost savings, and eliminates the need to constantly search for public charging stations
Main Features

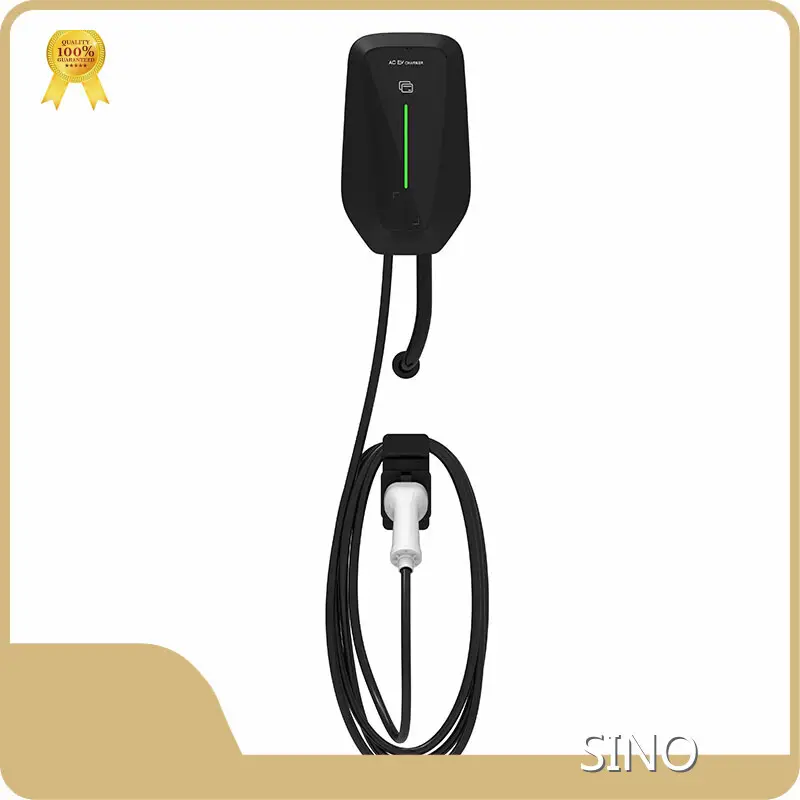

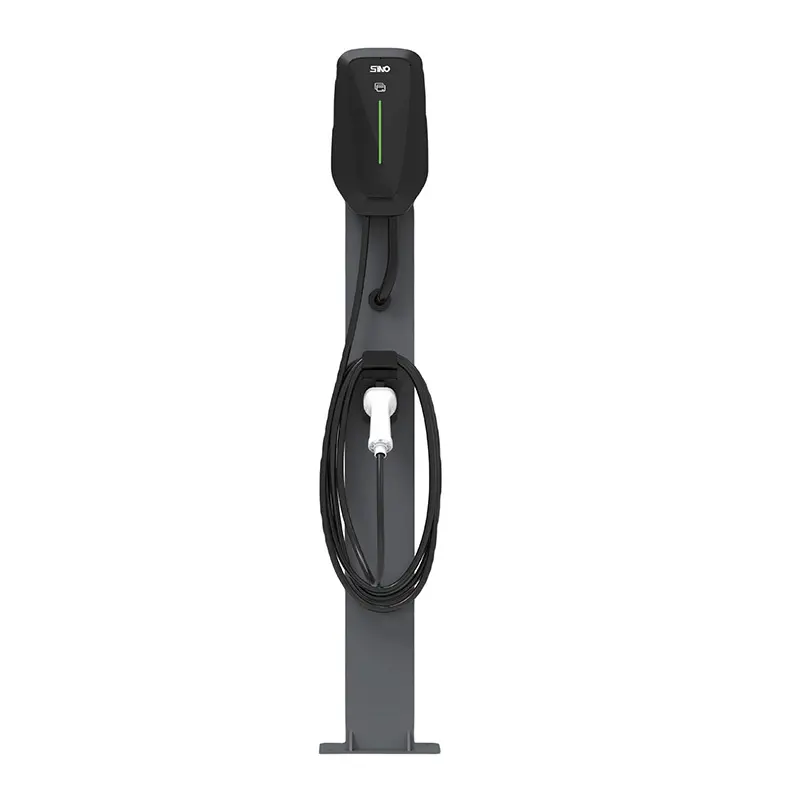

Product display
Model PEVC2108 AC EV Home Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW (11kW - 22kW Optional) | ||||||
| User Interface & Control | |||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, SurgeProtection | ||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 208mm*358mm*102mm( W*D*H ) | ||||||
| Package Dimension | 270mm*420mm*220mm( W*D*H ) | ||||||
| Weight | 3.3kg( Net ) / 4kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | CE | ||||||
Company Feature
• Founded in SINO has been adhering to the development philosophy of 'develop the business by technology and build the brand by quality'. We constantly improve internal management and production capability. Our commitment is to provide more and better products and service.
• SINO has a group of quality professionals, which provides strong support for corporate development.
• SINO's business covers many cities across the country, and the sales network is expanding year by year. After continuous development, we are currently exploring overseas markets.
If you have any suggestions on SINO's AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories, leave your contact information. We will get back to you as soon as possible!
