SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
SINO Wallbox Ac Charger Wallbox Ac ChargerFrom China
Product details of the wallbox ac charger
Product Introduction
Individualized design of wallbox ac charger has attracted many customers for now. The superior performance of the product is crowd-pleasing in the market. ZhuHai SINO energy technology Co.ltd can meet the needs of customers with the fastest speed and highest product quality of wallbox ac charger.
AC EV charging from 3kW to 22 kW for residential
SINO Energy offers a variety of AC chargers with power ratings of 3.7 kW to 22 kW designed for residential application. It supports type 1/ type 2/ GB/T plug and can be installed by wall-mounting and floor-mounting, can be easy controlled by plug & Charge/RFID/APP. Having a home EV charger allows you to charge your electric vehicle overnight or in most convenient without waiting in line from public charging stations.
Charging Your Electric Vehicle at Home
The wall-mounted EV Charger stations are most used in private homes; you can park your car at the garage and manage the charging status with a dedicated application. Once you have connected, the wall-mounted EV charger will charge the car ideally, safely, and in a short time. Home charging station provides convenience, cost savings, and eliminates the need to constantly search for public charging stations
Main Features
Product display

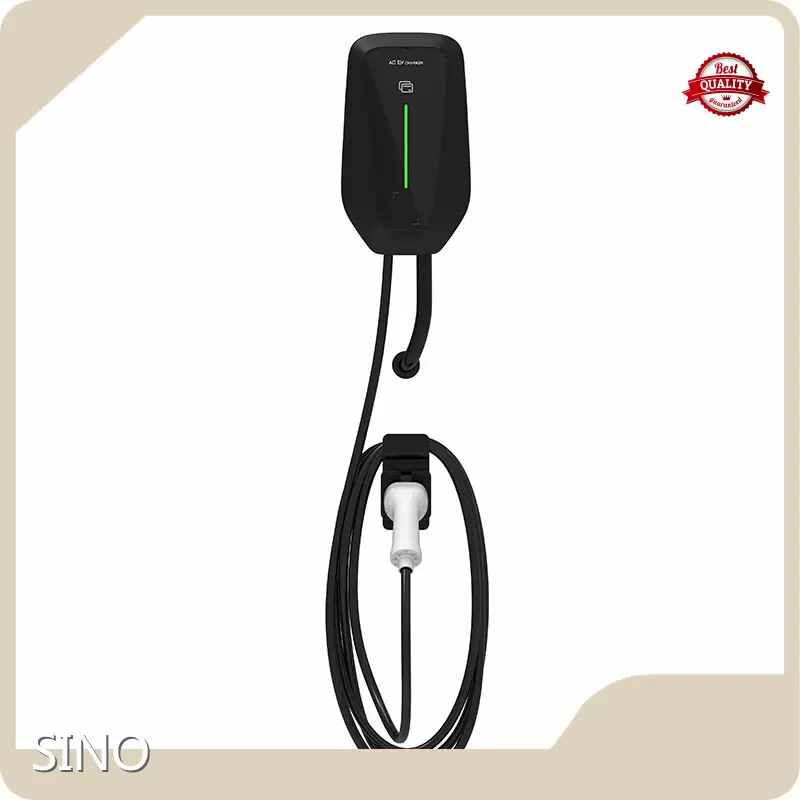

Model PEVC2108 AC EV Home Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW (11kW - 22kW Optional) | ||||||
| User Interface & Control | |||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, SurgeProtection | ||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 208mm*358mm*102mm( W*D*H ) | ||||||
| Package Dimension | 270mm*420mm*220mm( W*D*H ) | ||||||
| Weight | 3.3kg( Net ) / 4kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | CE | ||||||
Company Advantage
• While clinging to the sales channels, our company continues to explore new sales models and expand sales coverage. And now we have gradually realized the Internet+ and the sales range covers the whole country.
• SINO has experienced R&D technicians and professional to take continuous product innovation and improve product competitiveness. Moreover, our marketing elites open up markets with firm belief and push us to move forward steadily in the highly competitive market.
• SINO has built a comprehensive service model with advanced concepts and high standards, so as to provide systematic, efficient and complete services for consumers.
SINO's AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories are produced and sold directly from the factory. They have reliable quality and reasonable price. Bulk purchase is available. If needed, please contact us!
