Product details of the portable ev charger
Quick Detail
The design of portable ev charger from ZhuHai SINO energy technology Co.ltd is an overwhelming success. The outstanding quality of the product guarantees the stability of the function. portable ev charger can be applied to different industries, fields and scenes. The demand of the product is increasing and the market prospect of the product is promising.
Product Introduction
Choose SINO's portable ev charger for the following reasons.

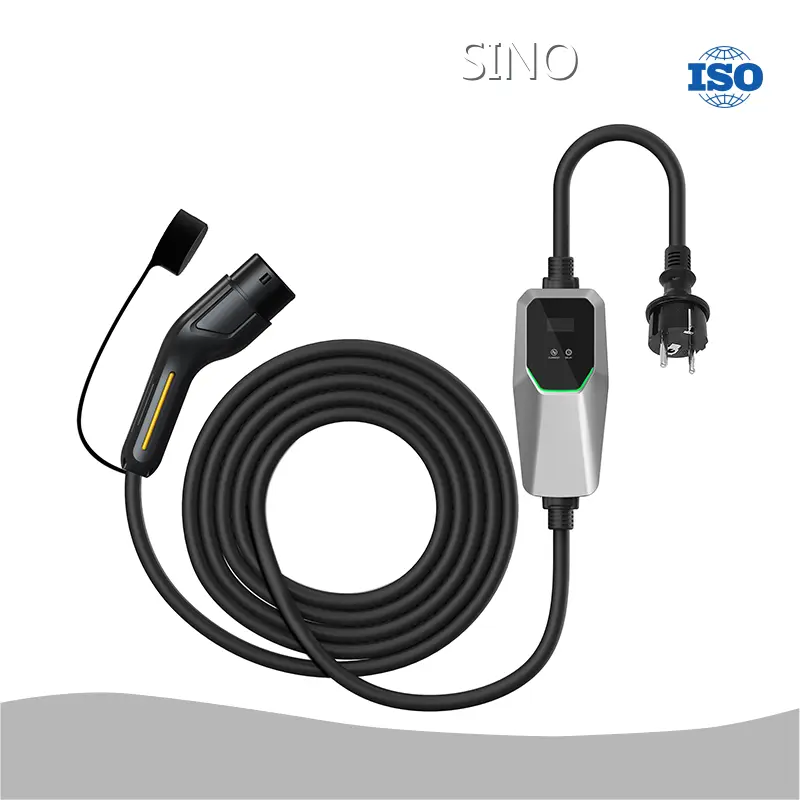

This Mode 2 Portable EV charger makes charging your car quick and effortless. Compact and durable, Provides a perfect charging for home use and on the go. It is simple to use, all you need to do is plug it into the PLUG outlet and then plug the charging gun into the charging port device will start charging your EV's battery. The protection class of the charging box is IP65 and the protection class of the charging gun is IP55 (when plugged in). It can charge electric vehicles with a power output of 3.5kW up to 22kW with charging connector of Type 1, type 2 or GB/T and can support single phase and three phase charging. The charger also has a user-friendly interface, displaying the charging status and providing feedback on charging progress and it has advanced safety features such as overcurrent and overvoltage protection, ensuring safe operation during charging.
Wide Application Scenarios
Compared with DC chargers, AC chargers have lower demands on the grid’s capacity, making them more easily integrated into residential applications. This flexibility ensures that they can be deployed in multiple regions and settings with different electrical systems and grid configurations.
Efficient and Fast Portable Level 2 Charger
Portable EV charging station certified to IEC 62752 and IEC 61851-21-2 standards; it provides level 2 fast charges of up to 16A/32A/40A through customized connectors for compatibility with any vehicle. The material of the charging cable is made of TPU, which is resistant to corrosion, abrasion, and low temperature. The cable remains soft and does not become hard when used in cold climates, making it inconvenient to use.
Main Features
Product display
Our Portable AC EV Charger Are Ideal For
Product parameter
Plug for EV | IEC 62196 type 2 & SAE J1772 Type 1 |
Rated Power | 3.5KW/7kW/11kW/22kW |
Rated | Adjustable 6-8-10-13-16A-20A-24A-32A |
Rated Voltage | 230V / 380V AC +/-15% |
Frequency | 50/60Hz |
Withstand Voltage | 2000V |
RCD | Type A(Type B optional) |
Plug for Wall Socket | Industrial Plugs,UK,NEMA14-50,NEMA 6-30P, NEMA 10-50P, Schhuko,CEE Plugs,etc |
Cable length: | 5m or customized |
Cable Material | TPU |
Enclosure | Thermoplastic, flame retardant grade UL94 V-0 |
Mechanical life | >10000 times no-load plug in/out. |
Coupled insertion force | 45N~100N |
Ingress Protection | IP65 (indoor and outdoor use) |
Certification | CE Approved |
Charging Protection | Over current, residual current, short circuit, surge, over/under voltage, over/under frequency, and over/under temperature protection;Leakage current protection,lighting protection, |
Product Warranty | 2 years |
Work Temperature | -30℃~+50℃ |
Weight | 3kg |
Packing Dimensions | H420 x 80 x 420 mm ( Width x Height x Depth ) |
