SINO EV Charger-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
SINO Ev Charging Systems Factory Price
Product details of the ev charging systems
Quick Detail
ev charging systems has the most amazing features and specifications. Internationally-certified quality: The product, tested by the authoritative third-party, has been approved to meet with the widely-recognized international quality standards. ZhuHai SINO energy technology Co.ltd has established a globally independent brand with superior products and services.
Product Introduction
After improvement, the ev charging systems produced by SINO is more brilliant in the following aspects.
HIGH COMPATIABLE AND SAFE EV CHARGING STATIONS
Compliant with OCPP Json1.6, global safety standards, CE, and RoHS certified.The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
FAST AND EFFICIENT EV CHARGING STATION
PEVC3401 30KW DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface
Main Features

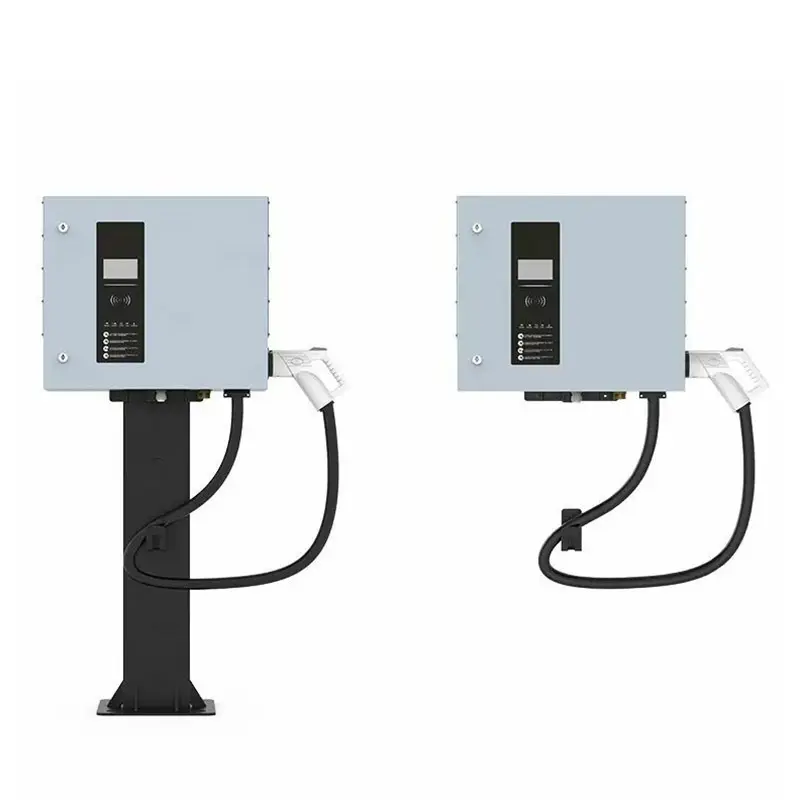

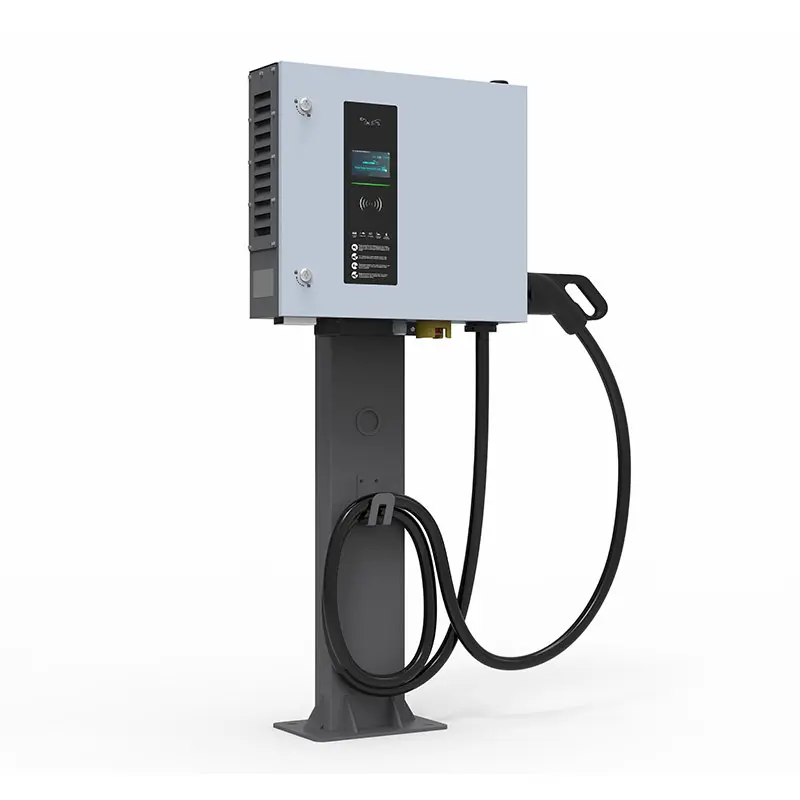

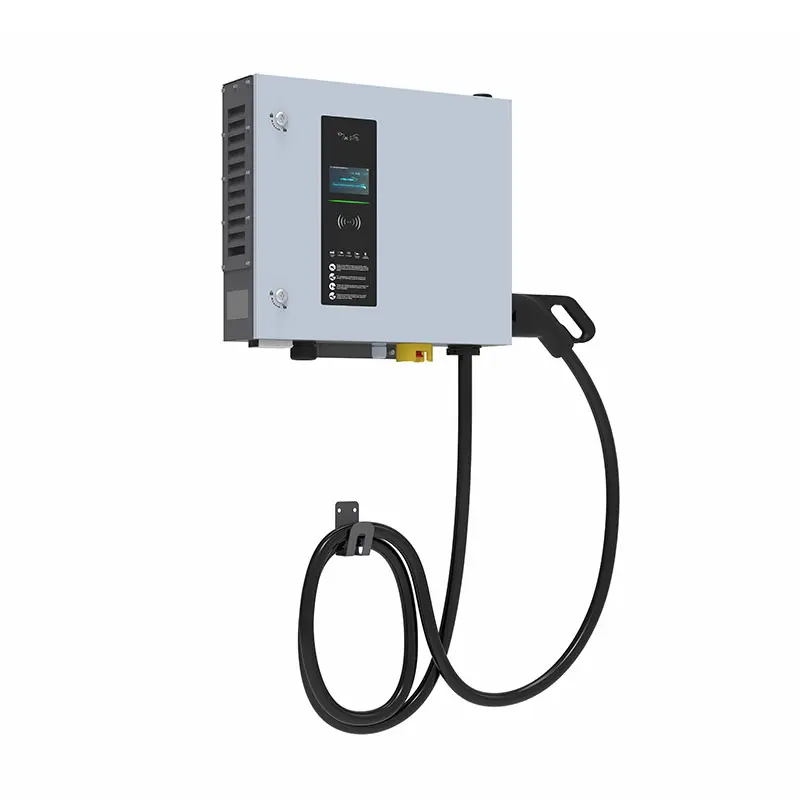

Product display
Our PEVC3401 30KW DC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 100A( 125A CHAdeMO ) | ||||||
| Rated Power | 30kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color Touch Screen | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet / Bluetooth / Wi-Fi ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 640mm*160mm*550mm( W*D*H ) | ||||||
| Package Dimension | 808mm*438mm*748mm( W*D*H ) | ||||||
| Weight | 80kg( Net ) / 85.7kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
Company Introduction
Lying in ZhuHai SINO energy technology Co.ltd is a modern company. We attach attention to AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories production. Our company has a strong service network and complete staffing. Based on the needs of customers, we will create a one-stop service for customers to solve related problems. If you have needs for purchasing our products in bulk, please contact our official customer service personnel.
