Product details of the charging station
Quick Detail
The design of SINO charging station is not only aesthetically appealing but also practical and user-friendly. Strict quality policies and standards are carried out to ensure zero defect rates. The product has high practical value and commercial value and is now widely used in the market.
Product Information
Compared with other similar products in the market, SINO's charging station is provided with the following outstanding advantages.
Future Smart Charging Network
Our charging stations not only support conventional charging methods but also smart charging management to improve charging efficiency, save energy costs and boosting revenue for businesses. It was integrated with OCPP 1.6J smart system and communicate by WI-FI, 4G, Ethernet to monitor all communication data in the charging process, realize smart charging and easy maintenance. The user-friendly LCD display, ensures easy activation through Plug & Play, mobile App, or RFID card, perfectly tailored to meet commercial charging needs, Energize Your Charging convenience
Private and commercial operation of EV charging stations
The Wall Mounted EV Charger with OCPP function is a versatile electric vehicle charging device designed for commercial and public charging applications. Its main feature is the OCPP (Open Charge Point Protocol) function, which enables it to integrate with multiple backend management systems and charge point operators. It normally supports most of electric vehicles with plug connector IEC 62195-2 (Type 2) and J1772 type 1.These chargers offer higher power, reducing charging times and ensuring your vehicle is quickly charged.
Main Features

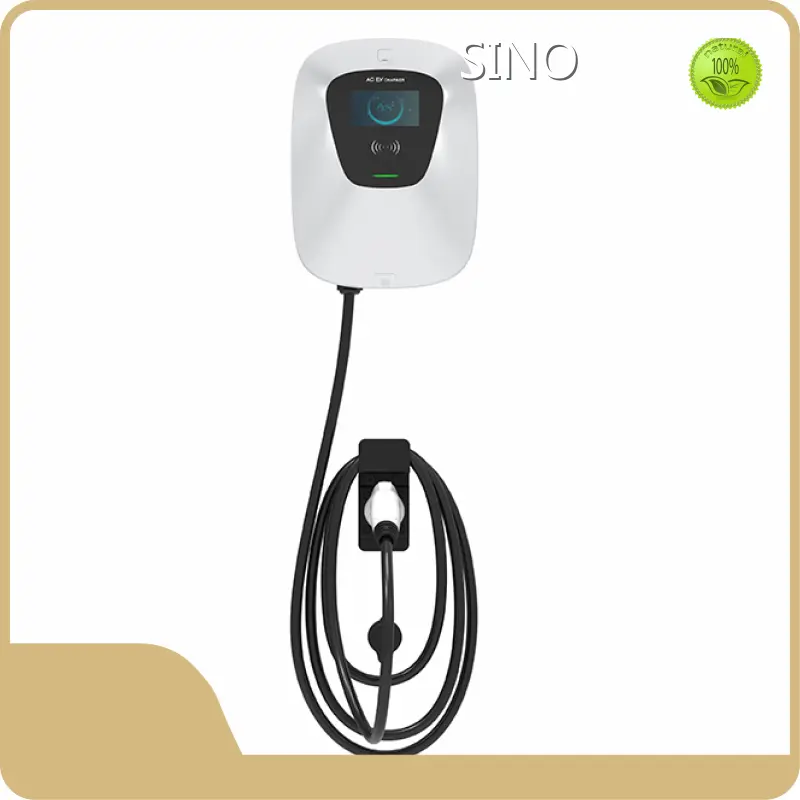

Product display
Model PEVC2107 AC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% or 400Vac±10% | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% or 400Vac±10% | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW / 11kW / 22kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color TouchScreen( Optional ) | ||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth / Wi-Fi (4G / Ethernet Optional ) | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 270mm*135mm*365mm( W*D*H ) | ||||||
| Package Dimension | 330mm*274mm*500mm( W*D*H ) | ||||||
| Weight | 5.6kg( Net ) / 7.2kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | TUV, CE | ||||||
Company Introduction
ZhuHai SINO energy technology Co.ltd enjoys high notability in the field of charging station. ZhuHai SINO energy technology Co.ltd has a specialized production base and a sound supply chain for charging station. SINO is committed to providing customers with high-quality products, services and solutions. Get more info!
