Product details of the ac ev charging station
Quick Overview
The quality level of SINO ac ev charging station is up to international standard. The product can meet customer's demanding requirement on durability and functionality. The product is fully applicable in the most practical parts of our life.
Product Information
Compared with other same kind of products in the market, SINO's ac ev charging station is equipped with the following outstanding advantages.

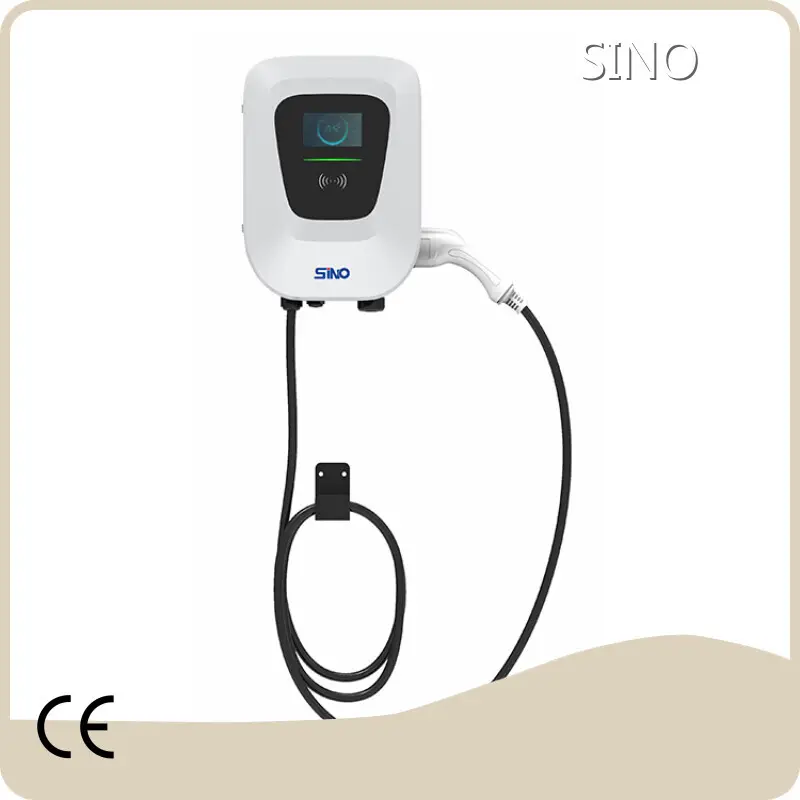

Business Wallbox EV Charger
AC EV Charger Business Wallbox prioritizes safety and efficiency, complying with EU standards and Attained certifications of CE, TUV. The MID certified energy meter guarantees the utmost accuracy in your charging experience. It seamlessly integrates to OCPP 1.6J, communicate with cloud platform via WI-FI, Ethernet,4G, enables it to communicate with other EV charging networks and backend management systems, allowing for centralized remote management and monitoring, effortlessly manage your charging and maintenance the stations remotely.
Smart Charging Network
A charger comes with high-integrated smart board and communication function, the wallbox designed meet IP65, can be used indoor and outdoor. Every AC charger for EVs comprises top-notch intelligent charging technology for both stability and reliability. It supports multiple payment options, including RFID authentication, credit card payments, and mobile payments, making it accessible to a wide range of users. It also supports OCPP 1.6J smart functions, allows charge point operators and EV fleet managers to easily manage and monitor their charging infrastructure, regardless of location or type of charger, It enables them to remotely configure and manage the charging settings, monitor usage and performance, and receive real-time notifications of any issues or system malfunctions.
Main Features
Product display
Model PEVC2201 AC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% （230Vac±10% Optional ） | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 400Vac ±10% （230Vac±10% Optional ） | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 11kW - 22kW (3.7kW - 7.4kW Optional) | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color TouchScreen( Optional ) | ||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | MID Meter | ||||||
| Communication | |||||||
| Backend | Bluetooth / Wi-Fi / Ethernet (4G Optional ) | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection | ||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 300mm*154mm*420mm( W*D*H ) | ||||||
| Package Dimension | 395mm*285mm*500mm( W*D*H ) | ||||||
| Weight | 5.9kg( Net ) / 7.7kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | TUV, CE | ||||||
