SINO EV Charger-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Hot Selling Dc Charging Made in China for Home Charging
Company Advantages
· The application of the advanced technology has made SINO dc charging more perfect on appearance.
· Each product meets the quality standards through strict quality test.
· ZhuHai SINO energy technology Co.ltd has a complete set of product quality assurance system.
Fast Charging, Cost Saving.
DC Charger PEVC3107 delivering fast charging speeds ranging from 60kW-160kW with the capability of Simultaneously charging to two vehicles at the same time. it was designed for high-powered performance which keeps electric vehicles on the road in no time. Modular design of the EV charging stations realize Easy Maintenance during the public operation. It used commercial grade AC power which is converted within the power module into DC power to then distribute directly to the vehicle’s battery. DC fast charging stations are the ideal choice for locations where EVs must gain the maximum range in the shortest possible time.
High Intelligence, Smart management.
PEVC3107 DC electric vehicle charger is a high-power DC fast EV Charger. Certified by OCPP, TUV, and CE, and EMI compliant with Class B, it offers a reliable and efficient charging experience for your EV. This EV chargers optimize energy management across complex charging and commercial operations. The feature leverages the station sophisticated controls and communication abilities like OCPP 1.6J to remotely facilitate uninterrupted high-demand charging.The user-friendly LCD display ensures easy activation through Plug& Play, mobile App, or RFID card, perfectly tailored to meet commercial charging needs. Experience efficient charging up to 120kW-160kW, boosting revenue for businesses, it is the perfect solution for Public charging operators.
Main Features
Product display

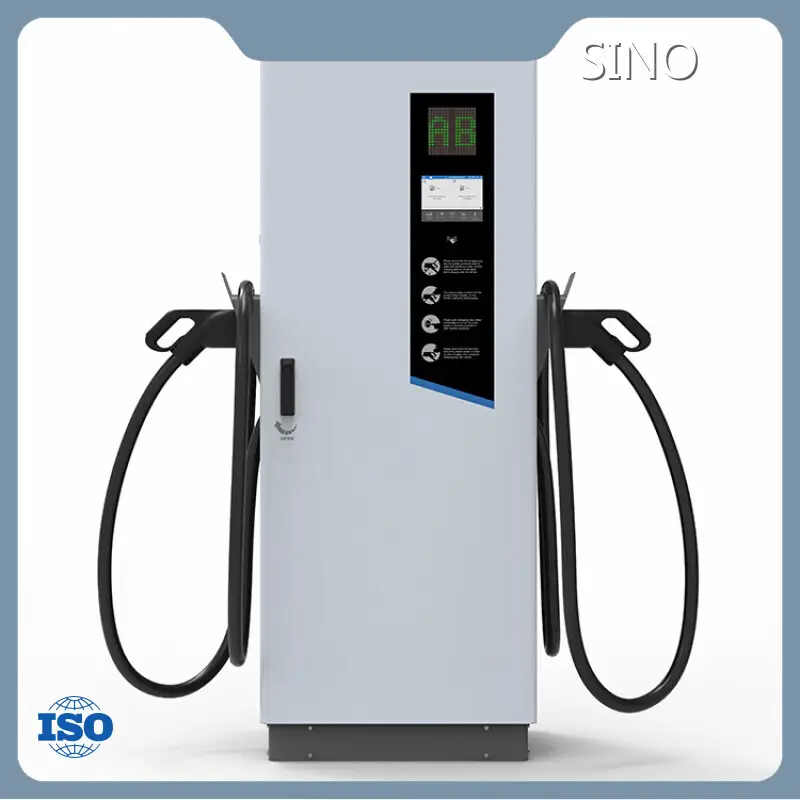

Model PEVC3107 60kW-160kW DC EV Fast Charger Are Ideal For Charger point operators
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 200A（250A Optional） | ||||||
| Rated Power | 60kW - 160kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 700mm*550mm*1800mm( W*D*H ) | ||||||
| Package Dimension | 950mm*720mm*1950mm( W*D*H ) | ||||||
| Weight | 363kg( Net ) / 380kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
Company Features
· ZhuHai SINO energy technology Co.ltd is a business with a renowned manufacturer, management and network experience.
· By introducing high-end technology, SINO has successfully produced qualified dc charging. With the introduction of highly advanced technology, SINO not only improves the technical force, but also satisfies the needs of customers.
· Efforts will be made to build service-oriented and innovative companies by ZhuHai SINO energy technology Co.ltd to provide a top-quality dc charging. Get info!
Application of the Product
dc charging developed and produced by SINO is widely applied to many industries and fields. It can fully meet the diversified needs of customers.
With a focus on customers' potential needs, SINO has the ability to provide one-stop solutions.
Product Comparison
Our dc charging has a certain share in the market because of the following characteristics.
