SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Hot Selling Dc Charger Manufacturer Price List
Company Advantages
· The colors of dc charger manufacturer is highly pure.
· dc charger manufacturer with full types is available in ZhuHai SINO energy technology Co.ltd.
· ZhuHai SINO energy technology Co.ltd is committed to providing customers with one-stop purchasing service for customers.
HIGH COMPATIABLE AND SAFE EV CHARGING STATIONS
Compliant with OCPP Json1.6, global safety standards, CE, and RoHS certified.The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
FAST AND EFFICIENT EV CHARGING STATION

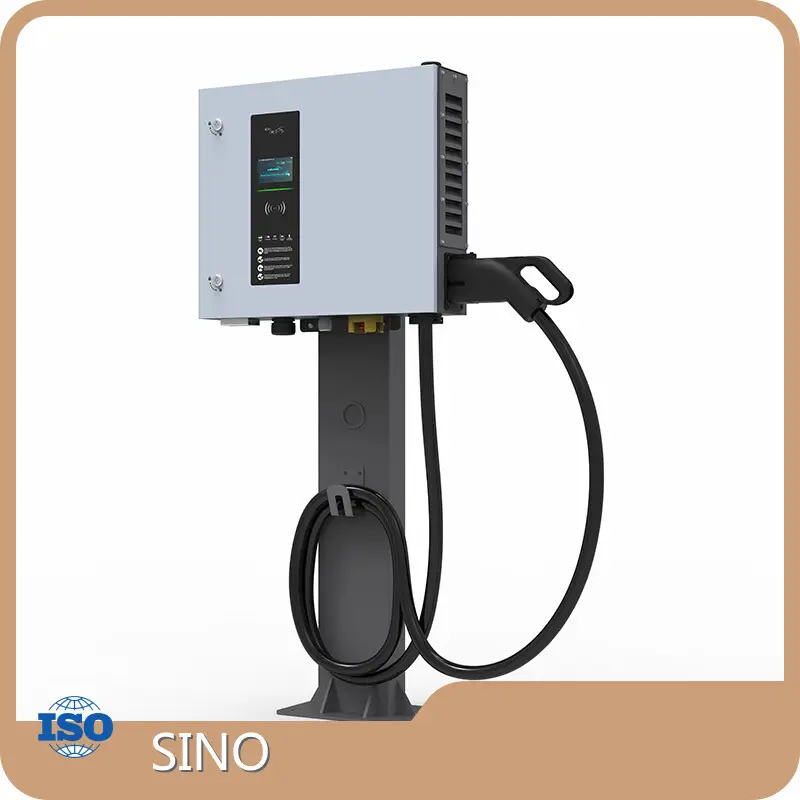

PEVC3401 30KW DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface
Main Features
Product display
Our PEVC3401 30KW DC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 100A( 125A CHAdeMO ) | ||||||
| Rated Power | 30kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color Touch Screen | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet / Bluetooth / Wi-Fi ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 640mm*160mm*550mm( W*D*H ) | ||||||
| Package Dimension | 808mm*438mm*748mm( W*D*H ) | ||||||
| Weight | 80kg( Net ) / 85.7kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
Company Features
· ZhuHai SINO energy technology Co.ltd, a leader in dc charger manufacturer innovation, is thought highly of by peer competitors for its strong competence in developing and manufacturing.
· ZhuHai SINO energy technology Co.ltd is technologically recognized in the field of dc charger manufacturer.
· SINO always insists that customer satisfaction is the first firm concept. Contact us!
Product Comparison
Our dc charger manufacturer has the following advantages over peer products.
