SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
High Quality 22kw Dc Charger Price List
Future Smart Charging Network
Our charging stations not only support conventional charging methods but also smart charging management to improve charging efficiency, save energy costs and boosting revenue for businesses. It was integrated with OCPP 1.6J smart system and communicate by WI-FI, 4G, Ethernet to monitor all communication data in the charging process, realize smart charging and easy maintenance. The user-friendly LCD display, ensures easy activation through Plug & Play, mobile App, or RFID card, perfectly tailored to meet commercial charging needs, Energize Your Charging convenience
Private and commercial operation of EV charging stations
The Wall Mounted EV Charger with OCPP function is a versatile electric vehicle charging device designed for commercial and public charging applications. Its main feature is the OCPP (Open Charge Point Protocol) function, which enables it to integrate with multiple backend management systems and charge point operators. It normally supports most of electric vehicles with plug connector IEC 62195-2 (Type 2) and J1772 type 1.These chargers offer higher power, reducing charging times and ensuring your vehicle is quickly charged.
Main Features

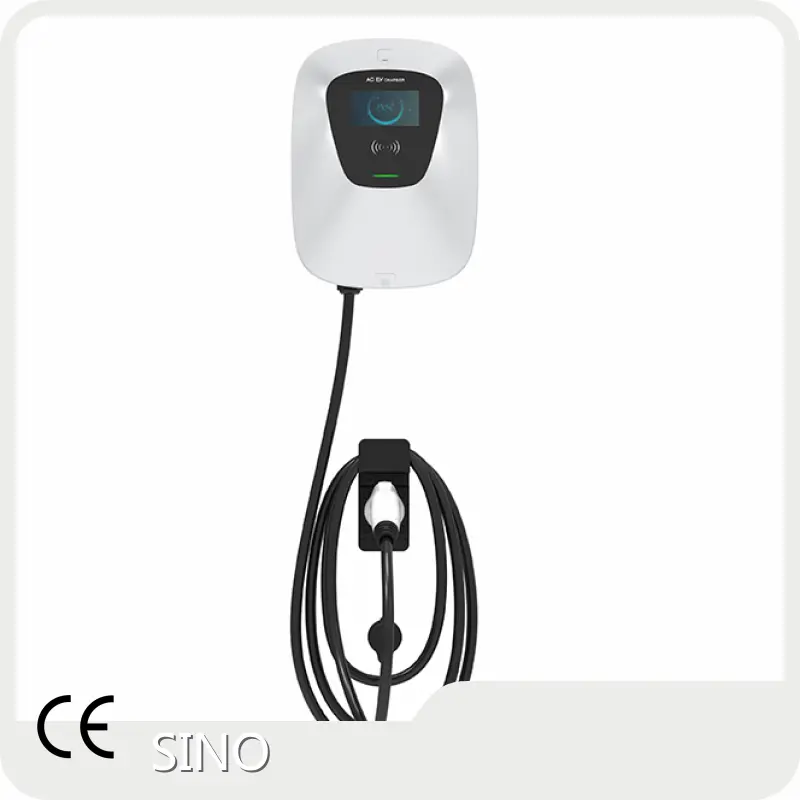

Product display
Model PEVC2107 AC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% or 400Vac±10% | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% or 400Vac±10% | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW / 11kW / 22kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color TouchScreen( Optional ) | ||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth / Wi-Fi (4G / Ethernet Optional ) | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 270mm*135mm*365mm( W*D*H ) | ||||||
| Package Dimension | 330mm*274mm*500mm( W*D*H ) | ||||||
| Weight | 5.6kg( Net ) / 7.2kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | TUV, CE | ||||||
Company Advantages
· SINO 22kw dc charger is manufactured in tune with set production guidelines by employing premium-quality raw material and pioneering technology.
· The product is not only of reliable quality, but also offers long-term excellent performance.
· The product has a more promising prospect in the application compared to other products in the industry.
Company Features
· ZhuHai SINO energy technology Co.ltd is an experienced manufacturer in China. We design, manufacture, and sell trustworthy products such as 22kw dc charger.
· ZhuHai SINO energy technology Co.ltd is deeply trusted by customers at home and abroad for its high quality thanks to advanced technology.
· The goal of ZhuHai SINO energy technology Co.ltd is to take the leading edge in the 22kw dc charger industry. Contact!
Application of the Product
SINO's 22kw dc charger is widely used in the industry and is widely recognized by customers.
With rich manufacturing experience and strong production strength, SINO is able to provide professional solutions according to customers' actual needs.
