SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
High End Ev Charger Supplier for Home Charging
Product details of the ev charger supplier
Product Overview
SINO ev charger supplier is designed by our experts bringing the latest concepts into the designing process. The product has passed through many quality tests and third-party certifications. This product is believed to have the extraordinary potential.
Product Introduction
ev charger supplier has the following differentiated advantages compared with other products in the same category.
Safe & High Compatible EV chargers
The DC Chargers is compatible with all types of Electric Vehicles currently on the market. it has a multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
Cost-effective, Smart management
Designed for optimal performance and cost savings. With its intelligent features, The DC EV fast charging station can seamlessly integrate with smart grids, load balancing, and remote monitoring capabilities, enable seamless remote operation and maintenance, reducing manpower costs.
Main Features
Product display

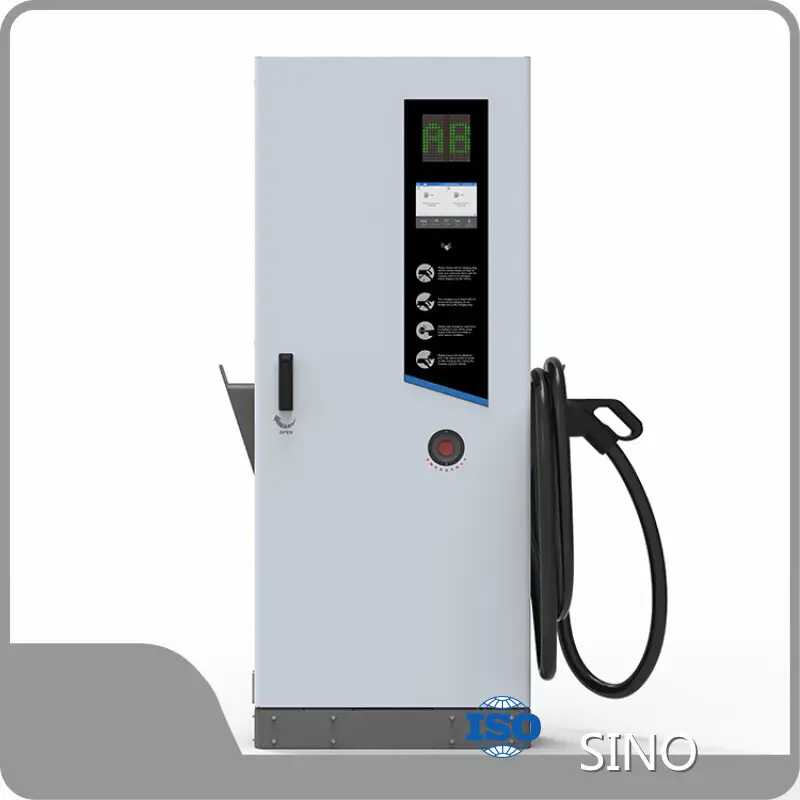

Model PEVC3106E 60kW DC EV Fast Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 200A（250A Optional） | ||||||
| Rated Power | 60kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 700mm*240mm*1750mm( W*D*H ) | ||||||
| Package Dimension | 1100mm*750mm*1890mm( W*D*H ) | ||||||
| Weight | 220kg( Net ) / 230kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
Company Introduction
Located in ZhuHai SINO energy technology Co.ltd is a company engaged in the production, processing and sales of AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories. Looking into the future, SINO will adhere to the enterprise spirit, which is, to be honest, and dedicated. Our business is focused on equality, mutual benefit, and common development. With a focus on talents cultivation, we strengthen brand building and improve core competitiveness. Our final aim is to become a modern enterprise with an excellent team, strong strength and advanced technology. Our company has a technical team composed of experienced experts in the industry, and maintains good cooperation with many domestic excellent research institutions. All this provides a solid strength and technical support for our product research and development. With a focus on AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories, SINO is dedicated to providing reasonable solutions for customers.
We have high production efficiency, and we look forward to the cooperation with you.
