SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Good Sellingdc Car Charger for Home for Public Charging
Company Advantages
· The production of SINO dc car charger for home adopts standardized production technology.
· The product is of high quality, recognized by many international quality inspection agencies.
· ZhuHai SINO energy technology Co.ltd has dozens of experienced, skilled working team for dc car charger for home production.
Fast Charging, Cost Saving.
DC Charger PEVC3108 delivering lightning-fast charging speeds ranging from 120kW-240kW with the capability of Simultaneously charging to two vehicles at the same time. it was designed for high-powered performance which keeps electric vehicles on the road in no time. Modular design of the EV charging stations realize Easy Maintenance during the public operation
High Intelligence, Smart management.
PEVC3108E DC electric vehicle charger is a high-power DC ultra-fast EV Charger. Certified by OCPP, TUV, and CE, and EMI compliant with Class B, it offers a reliable and efficient charging experience for your EV. This EV chargers optimize energy management across complex charging and commercial operations. The feature leverages the station sophisticated controls and communication abilities like OCPP 1.6J to remotely facilitate uninterrupted high-demand charging.
Main Features

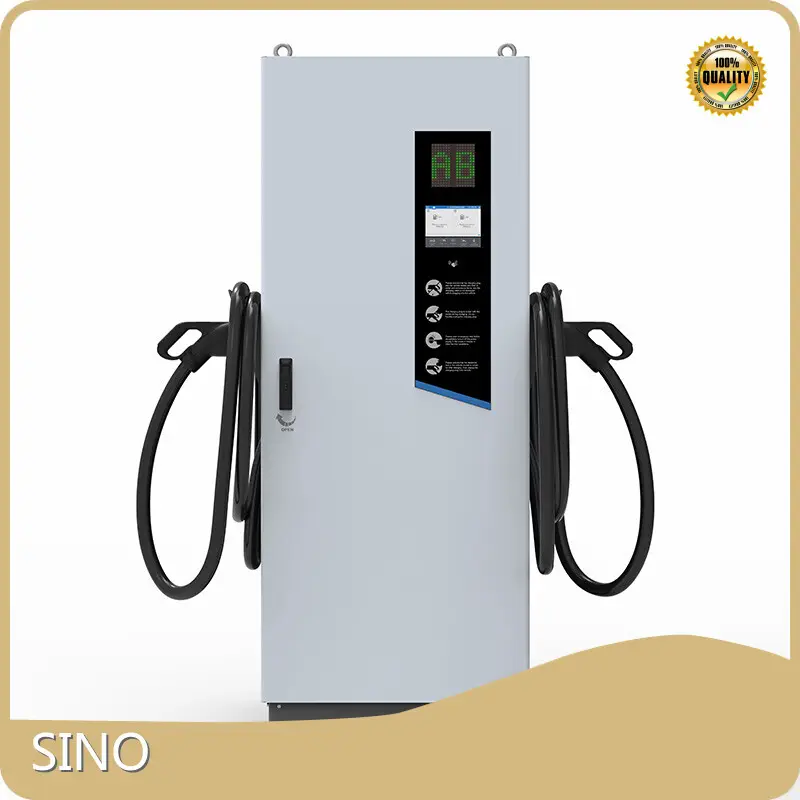

Product display
Model PEVC3108 120kW-240kW DC EV Fast Charger Are Ideal For Charger point operators
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 200A（250A Optional） | ||||||
| Rated Power | 120kW - 240kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 750mm*750mm*1900mm( W*D*H ) | ||||||
| Package Dimension | 1000mm*920mm*2050mm( W*D*H ) | ||||||
| Weight | 411kg( Net ) / 428kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | TUV, CE, CB | ||||||
Company Features
· With years of experience in developing and manufacturing of dc car charger for home, ZhuHai SINO energy technology Co.ltd stands out in today's market competition.
· Updating the equipment to manufacture dc car charger for home can make SINO to win more customers.
· Customers' satisfaction is a core value for the growth and profitability of our company. This satisfaction first relies on the quality of our teams. We would like to make efforts to convince customers that we have the responsibility, ability, and expertise to offer what they really need.
Product Details
With a focus on quality, SINO pays great attention to the details of dc car charger for home.
