For Home Charging Ac Ev Charging Station by SINO
Product details of the ac ev charging station
Product Information
SINO ac ev charging station undergoes regular inspection to achieve proper functionality. Having passed the quality assurance, the product is of high reliability. The product is rather competitive in the market and can be widely applied in many fields.
AC EV charging from 3kW to 22 kW for residential
SINO Energy offers a variety of AC chargers with power ratings of 3.7 kW to 22 kW designed for residential application. It supports type 1/ type 2/ GB/T plug and can be installed by wall-mounting and floor-mounting, can be easy controlled by plug & Charge/RFID/APP. Having a home EV charger allows you to charge your electric vehicle overnight or in most convenient without waiting in line from public charging stations.
Charging Your Electric Vehicle at Home
The wall-mounted EV Charger stations are most used in private homes; you can park your car at the garage and manage the charging status with a dedicated application. Once you have connected, the wall-mounted EV charger will charge the car ideally, safely, and in a short time. Home charging station provides convenience, cost savings, and eliminates the need to constantly search for public charging stations
Main Features

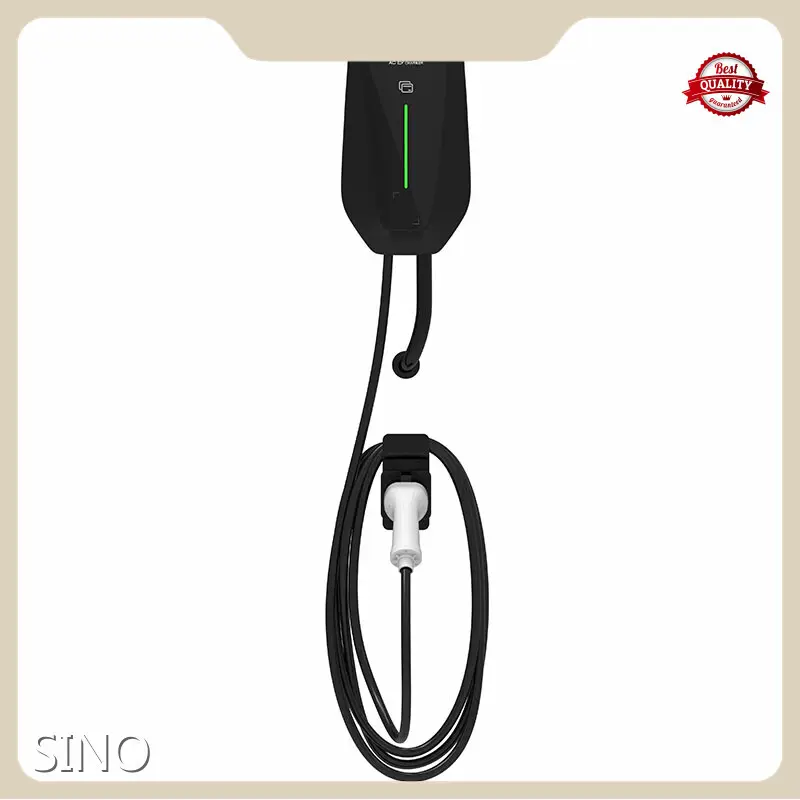

Product display
Model PEVC2108 AC EV Home Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW (11kW - 22kW Optional) | ||||||
| User Interface & Control | |||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, SurgeProtection | ||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 208mm*358mm*102mm( W*D*H ) | ||||||
| Package Dimension | 270mm*420mm*220mm( W*D*H ) | ||||||
| Weight | 3.3kg( Net ) / 4kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | CE | ||||||
