SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Fine Quality Dc Fast Charging Stations Dc Fast Charging Stations Company
Fast Charging, Cost Saving.
DC Charger PEVC3108 delivering lightning-fast charging speeds ranging from 120kW-240kW with the capability of Simultaneously charging to two vehicles at the same time. it was designed for high-powered performance which keeps electric vehicles on the road in no time. Modular design of the EV charging stations realize Easy Maintenance during the public operation
High Intelligence, Smart management.
PEVC3108E DC electric vehicle charger is a high-power DC ultra-fast EV Charger. Certified by OCPP, TUV, and CE, and EMI compliant with Class B, it offers a reliable and efficient charging experience for your EV. This EV chargers optimize energy management across complex charging and commercial operations. The feature leverages the station sophisticated controls and communication abilities like OCPP 1.6J to remotely facilitate uninterrupted high-demand charging.
Main Features

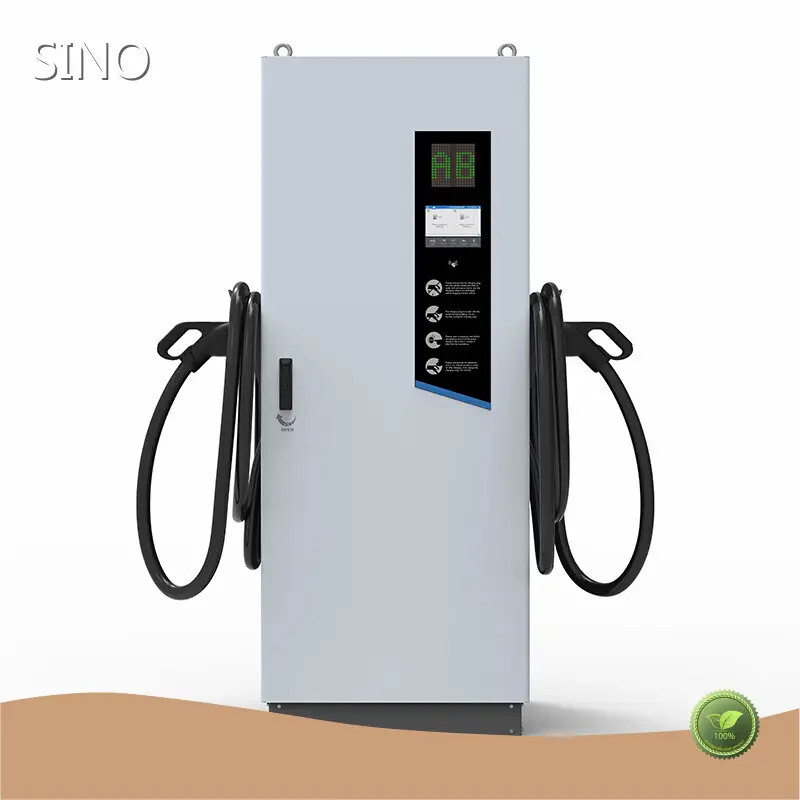

Product display
Model PEVC3108 120kW-240kW DC EV Fast Charger Are Ideal For Charger point operators
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 200A（250A Optional） | ||||||
| Rated Power | 120kW - 240kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 750mm*750mm*1900mm( W*D*H ) | ||||||
| Package Dimension | 1000mm*920mm*2050mm( W*D*H ) | ||||||
| Weight | 411kg( Net ) / 428kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | TUV, CE, CB | ||||||
Company Advantages
· Delicate colors are produced to make dc fast charging stations.
· In its production, we place the highest value on reliability and quality.
· With a greater market influence, the product will be used by a larger number of people.
Company Features
· ZhuHai SINO energy technology Co.ltd has rich dc fast charging stations production experience.
· ZhuHai SINO energy technology Co.ltd has strong technical force and product development capability.
· ZhuHai SINO energy technology Co.ltd will spare no effort to satisfy the increasingly rich consumer demand for dc fast charging stations. Get quote!
Application of the Product
The dc fast charging stations produced by SINO is of high quality. And it is one of the products widely used in the industry.
Guided by the actual needs of customers, SINO provides comprehensive, perfect and quality solutions based on the benefit of customers.
