SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Company Advantages
· During the manufacturing of SINO ev charging station supplier, the source of raw materials is secured. These materials are purchased from some of the most top grade suppliers with good reputation.
· The product is of a very high standard quality, well-recognized among customers.
· The product has won huge attention and praises from customers in the market.
HIGH COMPATIABLE AND SAFE EV CHARGING STATIONS
Compliant with OCPP Json1.6, global safety standards, CE, and RoHS certified.The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
FAST AND EFFICIENT EV CHARGING STATION

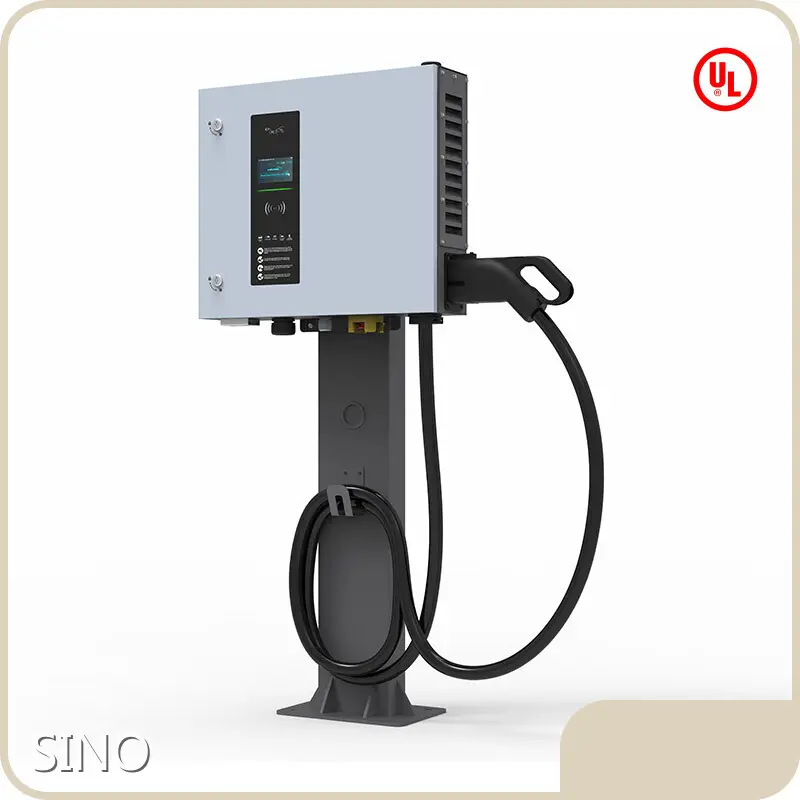

PEVC3401 30KW DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface
Main Features
Product display
Our PEVC3401 30KW DC EV Charger Are Ideal For
Product parameter
Electrical Properties | |||||||
Input Voltage | 400Vac ±10% | ||||||
Output Voltage | 150Vdc - 1000Vdc | ||||||
Max. Output Current | 100A( 125A CHAdeMO ) | ||||||
Rated Power | 30kW | ||||||
User Interface & Control | |||||||
LCD Display | 4.3" Color Touch Screen | ||||||
User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
Communication | |||||||
Backend | Ethernet / Bluetooth / Wi-Fi ( 4G Optional ) | ||||||
Charging Protocol | ISO 15118 , DIN 70121 | ||||||
Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
Protection | |||||||
Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
Mechanical & Packing | |||||||
IP, IK Level | IP54, IK10 | ||||||
Product Dimension | 640mm*160mm*550mm( W*D*H ) | ||||||
Package Dimension | 808mm*438mm*748mm( W*D*H ) | ||||||
Weight | 80kg( Net ) / 85.7kg( Gross ) | ||||||
Certifications & Standard | |||||||
Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
Certificate | CE |
Company Features
· With the spirit of continuous R&D, ZhuHai SINO energy technology Co.ltd has developed into a highly developed enterprise.
· Our manufacturing facility is located in an organized industrial zone. This plant is equipped with a very wide range of manufacturing machines and allows us to design, produce high-quality products such as ev charging station supplier. We have lean and flexible management layers. They are able to drive quick and effective decision making and thus enable the company to bring high-quality products including ev charging station supplier quickly to market.
· Following the trend of ev charging station supplier has been always something SINO sticks to. Welcome to visit our factory!
Product Comparison
Compared with the ev charging station supplier of our peers, the ev charging station supplier we produce is provided with the following advantages.
Enterprise Advantages
SINO has a professional team dedicated to product research and development. This ensures the continuous improvement of product quality.
Taking customers' interest as the core, our company provides elite services for our customers and chases for long-term and friendly contact with them.
SINO runs the business based on the corporate philosophy of 'sincerity-based, quality-oriented, reputation-driven'. We are dedicated to providing consumers with quality products and services.
Founded in our company has gone through years of wind and rain. We now become the vane of the industry after the process of continuous training and struggle.
Apart from making own traditional superior products, our company actively explores more markets and optimizes product allocation. At present, our products are not only sold well in China, but also exported to many foreign countries.
