Factory Price Charge Point Charger Price List
Product details of the charge point charger
Product Information
SINO charge point charger has a user-centric and product-centric design. Our charge point charger is solid and durable enough for long-term use. With years of quality system management, SINO acts as the leader of offering the finest charge point charger for customers.

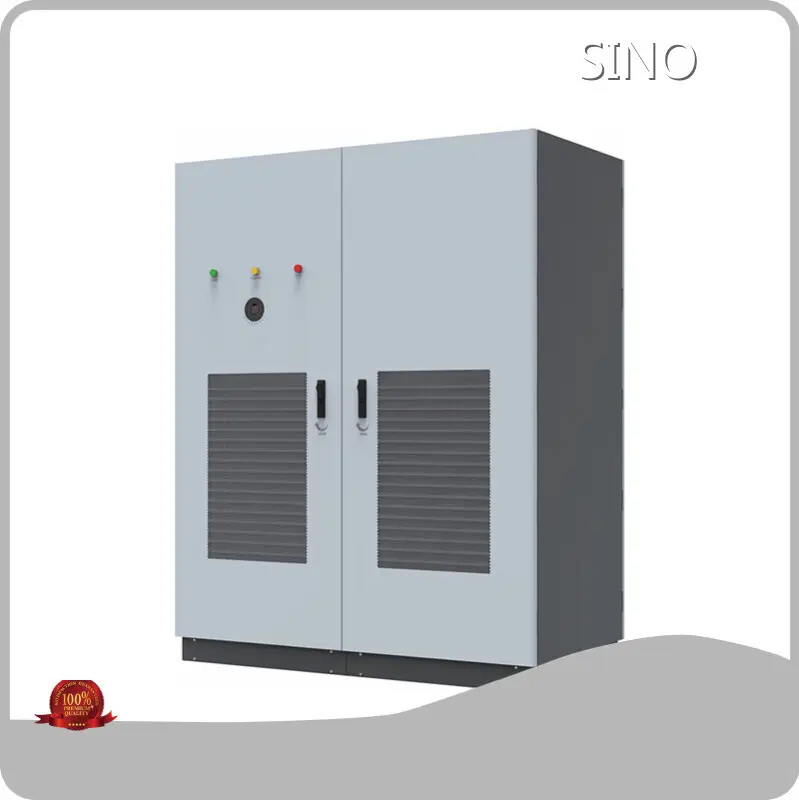

The split DC charging hub integrates power distribution, power transformation, and charging cabinet, with an external charging terminal. The charger modules is based on the principle of on-demand distribution, overall optimization and flexible customization, flexibly and dynamically providing a variety of distribution methods according to different models and quantities to improve operational efficiency When charging electric vehicles. The rectifier cabinet boasts a power range of 360kW to 600kW, while the charging terminal operates at 240kW for air cooling charging connector and 500kW for liquid cooling charging connector. The split design enhances space flexibility, promoting adaptability to various environments.
The compatibility with the OCPP 1.6J protocol allows for data transmission, Remote monitoring and management can be realized with an intelligent mobile app, Check the real-time status and historical statistics anywhere and anytime. Users can also enjoy superior functions like charging reservation, max current setting and remote firmware upgrading, allowing users enjoy the latest and best features while maintaining device stability.
FLEXIBLE CAPACITY, EFFICIENT SPLIT CHARGE SYSTEM
Highlighted by advanced capabilities such as power transformation, charging control, interactive man-machine control, and network communications, this product excels in versatility. The charger's power conversion unit follows a modular design, offering flexibility in configuring power output, ranging from 30kw to 40kw This adaptability ensures compatibly with diverse electric vehicle capacities, Coupled with IP55 rating, this solution stands out as an optional choice for efficient outdoor fast DC charging.
FAST, INTELLIGENT, HIGH-CAPACITY CHARGING HUB
The split design of the 360kW/480kW/600kW High power DC charging system can charge 2-8 vehicles simultaneously, making it more efficient in high-traffic areas such as motorways or commercial car parks. Smart charging scheduling helps optimize charging times to reduce peak power demand, while real-time monitoring ensures charging stations are operating efficiently and effectively. It also reduces overall installation costs for car park operators, as they can service more vehicles with fewer charging stations.
Main Features
Product display
Model PEVC3302 240-600kW Split Charging System Are ldeal For
Product parameter
| Electrical Properties | |
| AC Input Voltage | 400VAC±10%, 3P+N+PE |
| Output Voltage | 150-1000VDC |
| Output power | 480kW |
| Number of Output Ports | 8(max) |
| Voltage accuracy | ≤0.5% |
| Current accuracy | ≤1% |
| Environmental parameters | |
| Lightning protection | Level C |
| IP and IK rating | IP55/IK10 |
| Safety protection | |
| Insulation resistance | ≥10MΩ |
| Impulse voltage | ≥2500VDC |
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection, RCD, Emergency stop |
| Others | |
| Cooling system | Forced air cooling |
| Operational noise level | ≤65dB |
| Power distribution mode | Dynamic flexibility distribution |
| Interface protocol | CAN(alternative:RS485) |
| Enclosure type | Galvanized sheet steel |
| Dimensions (D x W x H) | 1600x850x2000mm |
| Weight | 700kg |
| Compliance | IEC61851-1,IEC61851-23, IEC61851-21-2 |
| Parameter type | HPC Charge station | Charge station |
| Electrical Properties | ||
| DC Input Voltage | 150-1000VDC | 150-1000VDC |
| AC Input Voltage | 230V(±10%) | 230V(±10%) |
| Output Voltage | 150-1000VDC | 150-1000VDC |
| Output Maximum current | 500A | 250A |
| Output Maximum power | 480kW | 250kW |
| Number of Output Ports | 1 | 1 or 2 |
| Connector | CCS1/CCS2,GB/T | CCS1/CCS2,GB/T |
| Environmental parameters | ||
| Lightning protection | Level C | Level C |
| IP and IK rating | IP55/IK10 | IP55/IK10 |
| Cooling system | liquid cooling | Forced air cooling |
| Protection functions | ||
|
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection，RCD, Emergency stop,Insulation monitoring,Reverse polarity protection |
||
| Others | ||
| HMI | 7-inch touchscreen | 7-inch touchscreen |
| Payment support | IC Card/APP | IC Card/APP |
| Power meter | Accuracy Class 1.0 energy meter | Accuracy Class 1.0 energy meter |
| Operational noise level | ≤60dB | ≤45dB |
| Communication | Ethernet/4G | Ethernet/4G |
| Interface protocol | CAN(alternative:RS485) | CAN(alternative:RS485) |
| Enclosure type | Galvanized sheet steel | Galvanized sheet steel |
| Dimensions (D x W x H) | 450x400x1600mm | 450x200x1450mm |
| Weight | 120kg | 75kg-85kg |
| Compliance |
IEC61851-1,IEC61851-23, IEC61851-24, IEC62196-1,IEC62196-3 |
IEC61851-1,IEC61851-23, IEC61851-24, IEC62196-1,IEC62196-3 |
