SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Factory Direct Ev Charger Supplier Factory for Public Charging
Product details of the ev charger supplier
Product Information
SINO ev charger supplier is available in an innovative and attractive design. This product is widely recommended and valued for its excellent quality and durability. ZhuHai SINO energy technology Co.ltd only supplies high quality ev charger supplier with the most competitive price.

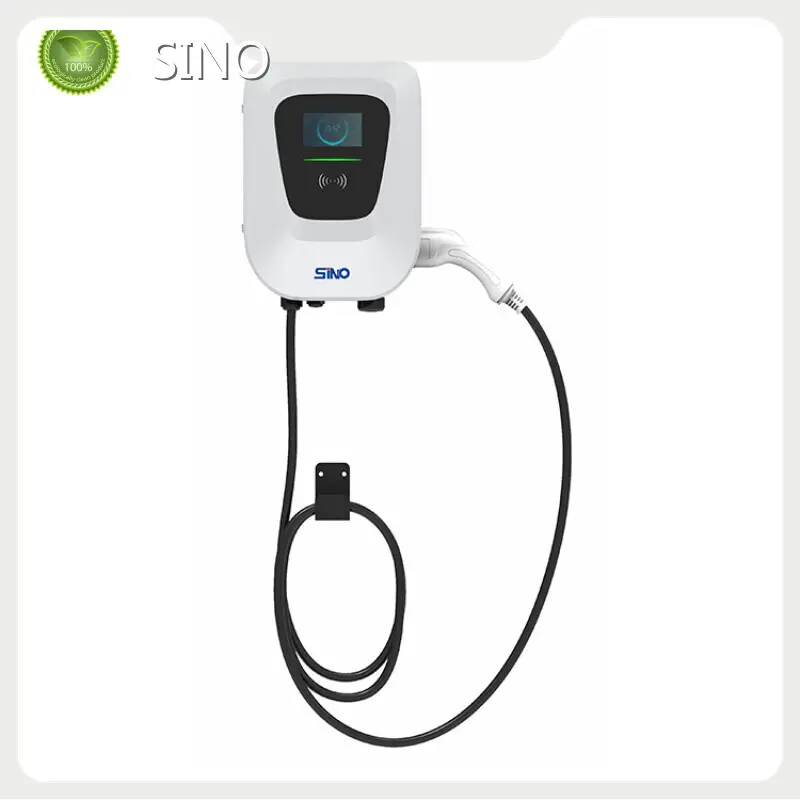

Business Wallbox EV Charger
AC EV Charger Business Wallbox prioritizes safety and efficiency, complying with EU standards and Attained certifications of CE, TUV. The MID certified energy meter guarantees the utmost accuracy in your charging experience. It seamlessly integrates to OCPP 1.6J, communicate with cloud platform via WI-FI, Ethernet,4G, enables it to communicate with other EV charging networks and backend management systems, allowing for centralized remote management and monitoring, effortlessly manage your charging and maintenance the stations remotely.
Smart Charging Network
A charger comes with high-integrated smart board and communication function, the wallbox designed meet IP65, can be used indoor and outdoor. Every AC charger for EVs comprises top-notch intelligent charging technology for both stability and reliability. It supports multiple payment options, including RFID authentication, credit card payments, and mobile payments, making it accessible to a wide range of users. It also supports OCPP 1.6J smart functions, allows charge point operators and EV fleet managers to easily manage and monitor their charging infrastructure, regardless of location or type of charger, It enables them to remotely configure and manage the charging settings, monitor usage and performance, and receive real-time notifications of any issues or system malfunctions.
Main Features
Product display
Model PEVC2201 AC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% （230Vac±10% Optional ） | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 400Vac ±10% （230Vac±10% Optional ） | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 11kW - 22kW (3.7kW - 7.4kW Optional) | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color TouchScreen( Optional ) | ||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | MID Meter | ||||||
| Communication | |||||||
| Backend | Bluetooth / Wi-Fi / Ethernet (4G Optional ) | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection | ||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 300mm*154mm*420mm( W*D*H ) | ||||||
| Package Dimension | 395mm*285mm*500mm( W*D*H ) | ||||||
| Weight | 5.9kg( Net ) / 7.7kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | TUV, CE | ||||||
Company Advantage
• SINO's sales network covers from the whole country to some countries and regions such as North America, Europe, and Southeast Asia.
• SINO has a strong R&D team to ensure the product quality and has a professional service team to guarantee the excellent service.
• SINO offers technical training for customers freely. Moreover, we respond quickly to customer feedback and provide timely, thoughtful and high-quality services.
For the purchase of AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories, please contact SINO.
Add.: Building A10, No.81 Dingye Road, Gaoxin District, Zhuhai, GuangDong, China
Email: info@sinoevsetech.com
Phone: 0086 756 6931888
WhatsApp/Wechat: +86 13554922072
