Product Introduction
With unique design, our ev charging station supplier can satisfy the pursuits of clients to it. The product is of high quality and can withstand rigorous quality and performance tests. ZhuHai SINO energy technology Co.ltd can help to identify clients' needs and circumstances.
Safe & High Compatible EV chargers
The DC Chargers is compatible with all types of Electric Vehicles currently on the market. it has a multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
Cost-effective, Smart management
Designed for optimal performance and cost savings. With its intelligent features, The DC EV fast charging station can seamlessly integrate with smart grids, load balancing, and remote monitoring capabilities, enable seamless remote operation and maintenance, reducing manpower costs.
Main Features

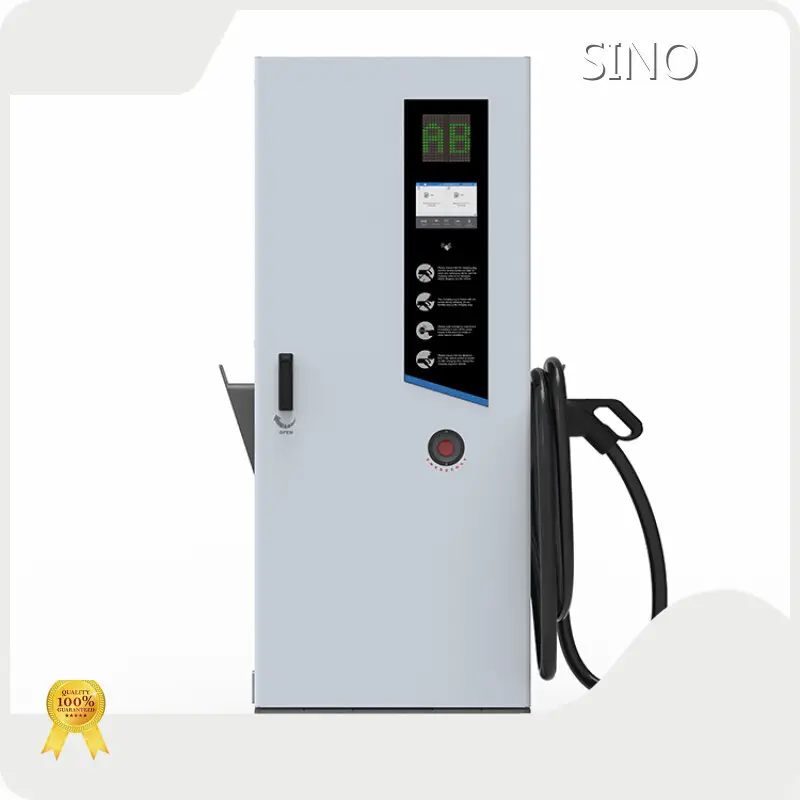

Product display
Model PEVC3106E 60kW DC EV Fast Charger Are Ideal For
Product parameter
Electrical Properties | |||||||
Input Voltage | 400Vac ±10% | ||||||
Output Voltage | 150Vdc - 1000Vdc | ||||||
Max. Output Current | 200A(250A Optional) | ||||||
Rated Power | 60kW | ||||||
User Interface & Control | |||||||
LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
Communication | |||||||
Backend | Ethernet ( 4G Optional ) | ||||||
Charging Protocol | ISO 15118 , DIN 70121 | ||||||
Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
Protection | |||||||
Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
Mechanical & Packing | |||||||
IP, IK Level | IP54, IK10 | ||||||
Product Dimension | 700mm*240mm*1750mm( W*D*H ) | ||||||
Package Dimension | 1100mm*750mm*1890mm( W*D*H ) | ||||||
Weight | 220kg( Net ) / 230kg( Gross ) | ||||||
Certifications & Standard | |||||||
Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
Certificate | CE |
