SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Ev Charger Supplier Factory Price
Product details of the ev charger supplier
Quick Overview
More customers have shown more interest in the unique design of ev charger supplier. Its quality is ensured by a comprehensive quality management system. ZhuHai SINO energy technology Co.ltd is able to meet the needs of different customers and new ev charger supplier product development.
Product Introduction
SINO adheres to the principle of 'details determine success or failure' and pays great attention to the details of ev charger supplier.
Future Smart Charging Network
Our charging stations not only support conventional charging methods but also smart charging management to improve charging efficiency, save energy costs and boosting revenue for businesses. It was integrated with OCPP 1.6J smart system and communicate by WI-FI, 4G, Ethernet to monitor all communication data in the charging process, realize smart charging and easy maintenance. The user-friendly LCD display, ensures easy activation through Plug & Play, mobile App, or RFID card, perfectly tailored to meet commercial charging needs, Energize Your Charging convenience
Private and commercial operation of EV charging stations

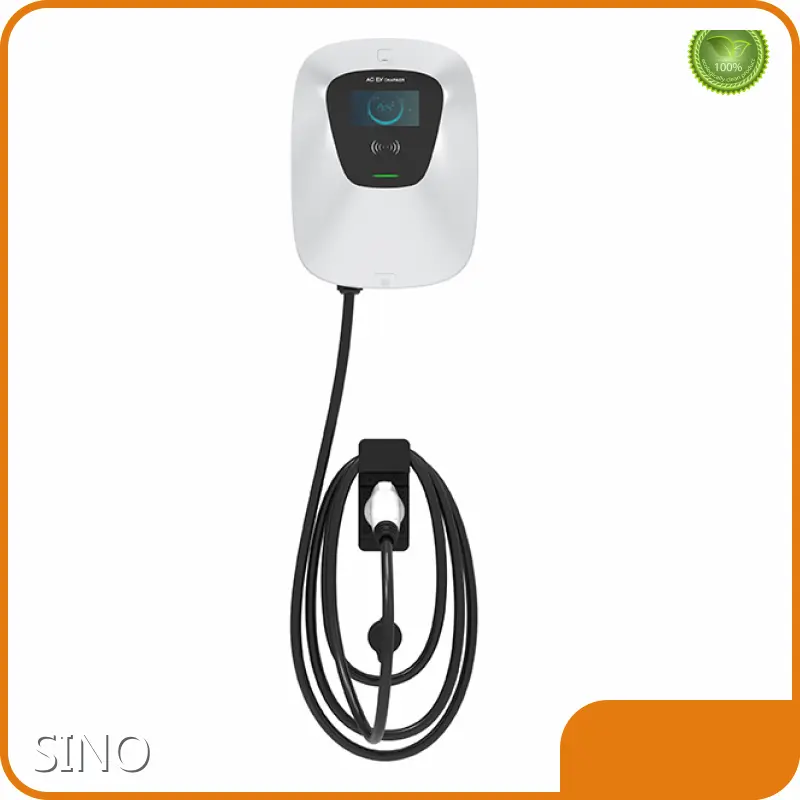

The Wall Mounted EV Charger with OCPP function is a versatile electric vehicle charging device designed for commercial and public charging applications. Its main feature is the OCPP (Open Charge Point Protocol) function, which enables it to integrate with multiple backend management systems and charge point operators. It normally supports most of electric vehicles with plug connector IEC 62195-2 (Type 2) and J1772 type 1.These chargers offer higher power, reducing charging times and ensuring your vehicle is quickly charged.
Main Features
Product display
Model PEVC2107 AC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% or 400Vac±10% | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% or 400Vac±10% | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW / 11kW / 22kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color TouchScreen( Optional ) | ||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth / Wi-Fi (4G / Ethernet Optional ) | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 270mm*135mm*365mm( W*D*H ) | ||||||
| Package Dimension | 330mm*274mm*500mm( W*D*H ) | ||||||
| Weight | 5.6kg( Net ) / 7.2kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | TUV, CE | ||||||
Company Information
For years, ZhuHai SINO energy technology Co.ltd has been recognized as a reliable manufacturer of ev charger supplier. We are well known for providing innovative products. In order to improve the core competitiveness, the technical center of SINO has fully learnt the advantages of advanced technology. In providing ev charger supplier, we never neglect the importance of service and quality. Call now!
Customers who need our products are welcomed to contact us for consultation.
Add.: Building A10, No.81 Dingye Road, Gaoxin District, Zhuhai, GuangDong, China
Email: info@sinoevsetech.com
Phone: 0086 756 6931888
WhatsApp/Wechat: +86 13554922072
