SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Ev Charge Controller - for Home Charging - SINO
Product details of the ev charge controller
Quick Overview
SINO ev charge controller is designed with an innovative concept. The implementation of the complete quality management system greatly guarantee that the product is manufactured according to the international quality standards. ev charge controller developed and produced by SINO is widely applied to many industries and fields. It can fully meet the diversified needs of customers. This SINO branded product has established a good social image in development.
Product Introduction
SINO's ev charge controller has been greatly improved in the following details.
HIGH COMPATIABLE AND SAFE EV CHARGING STATIONS
Compliant with OCPP Json1.6, global safety standards, CE, and RoHS certified.The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
FAST AND EFFICIENT EV CHARGING STATION

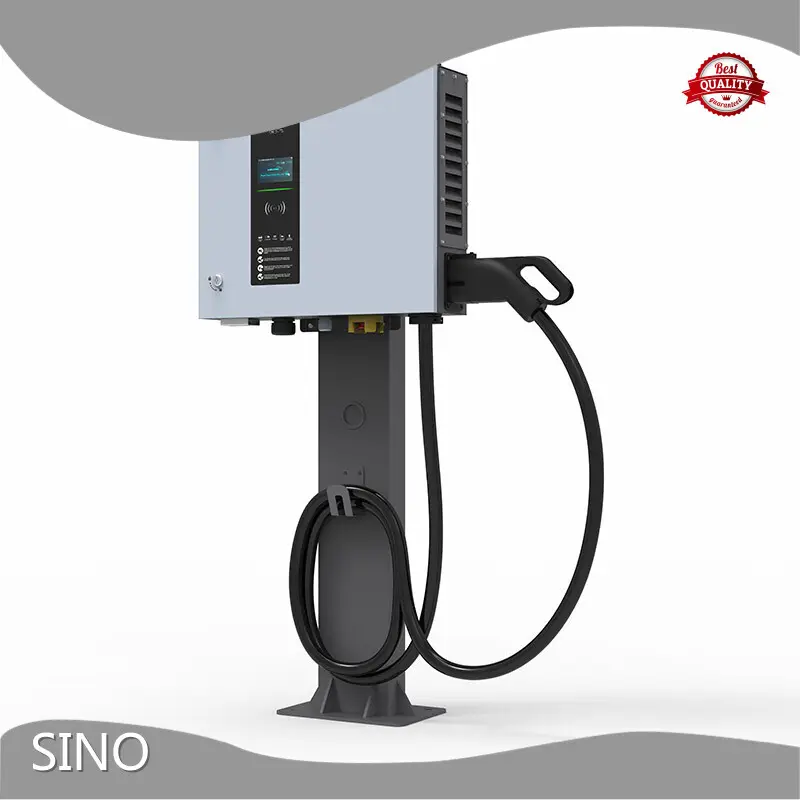

PEVC3401 30KW DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface
Main Features
Product display
Our PEVC3401 30KW DC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 100A( 125A CHAdeMO ) | ||||||
| Rated Power | 30kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color Touch Screen | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet / Bluetooth / Wi-Fi ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 640mm*160mm*550mm( W*D*H ) | ||||||
| Package Dimension | 808mm*438mm*748mm( W*D*H ) | ||||||
| Weight | 80kg( Net ) / 85.7kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
Company Advantages
In a short history, ZhuHai SINO energy technology Co.ltd has developed into a powerful company, focusing on the design and manufacturing of ev charge controller. The experience of having produced billions of products over many years certifies us as the most efficient ev charge controller manufacturer today. ZhuHai SINO energy technology Co.ltd is a manufacturer with lofty aspirations and good ideals for a worldwide famous ev charge controller provider. Check it!
Our products are available in various types and reasonable price. Welcome people from all walks of life to inquire and discuss business.
Add.: Building A10, No.81 Dingye Road, Gaoxin District, Zhuhai, GuangDong, China
Email: info@sinoevsetech.com
Phone: 0086 756 6931888
WhatsApp/Wechat: +86 13554922072
