SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Durable Ev Home Chargers Directly Sale for Public Charging
Product details of the ev home chargers
Product Introduction
Supported by highly proficient workers, SINO ev home chargers is delicately crafted and has an aesthetically-pleasing appearance. This product maintains absolute functional reliability during its service life. This product steadliy meets the market demand.
HIGH COMPATIABLE AND SAFE EV CHARGING STATIONS
Compliant with OCPP Json1.6, global safety standards, CE, and RoHS certified.The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
FAST AND EFFICIENT EV CHARGING STATION
PEVC3401 30KW DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface
Main Features

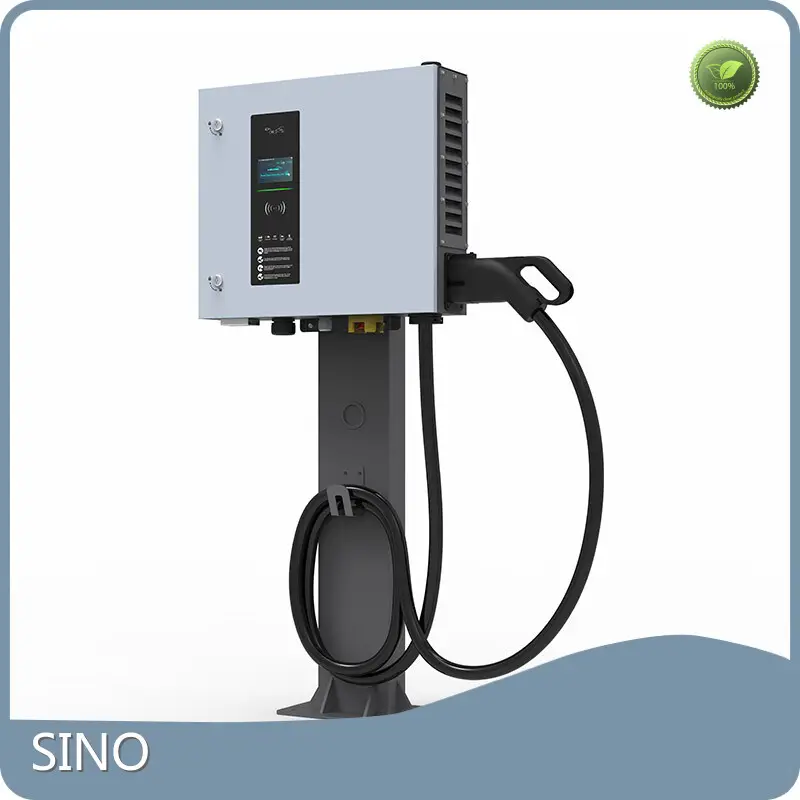

Product display
Our PEVC3401 30KW DC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 100A( 125A CHAdeMO ) | ||||||
| Rated Power | 30kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color Touch Screen | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet / Bluetooth / Wi-Fi ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 640mm*160mm*550mm( W*D*H ) | ||||||
| Package Dimension | 808mm*438mm*748mm( W*D*H ) | ||||||
| Weight | 80kg( Net ) / 85.7kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
Company Advantage
• We have established a professional operation team with consumer demand as the core, and conducted unbounded transmission on the Internet. All this promotes our products to expand channels in the domestic and foreign markets, and continuously provides quality products for the vast consumer market.
• Our company has a perfect sales system. So our products are not only sold well in various provinces, cities and autonomous regions in China, but also exported to different countries and regions overseas.
• We have established a professional service team to provide customers with speedy, professional and comprehensive services. Furthermore, we help customers with the grasp of a better understanding and use of products.
• Established in SINO has been continuously launching competitive products during the rapid development for years. Now we become a leader in the industry.
Welcome to SINO. If you have any questions when selecting AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories, feel free to consult us. We will reply you patiently.
