SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Safe & High Compatible EV chargers
The DC Chargers is compatible with all types of Electric Vehicles currently on the market. it has a multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
Cost-effective, Smart management
Designed for optimal performance and cost savings. With its intelligent features, The DC EV fast charging station can seamlessly integrate with smart grids, load balancing, and remote monitoring capabilities, enable seamless remote operation and maintenance, reducing manpower costs.
Main Features
Product display

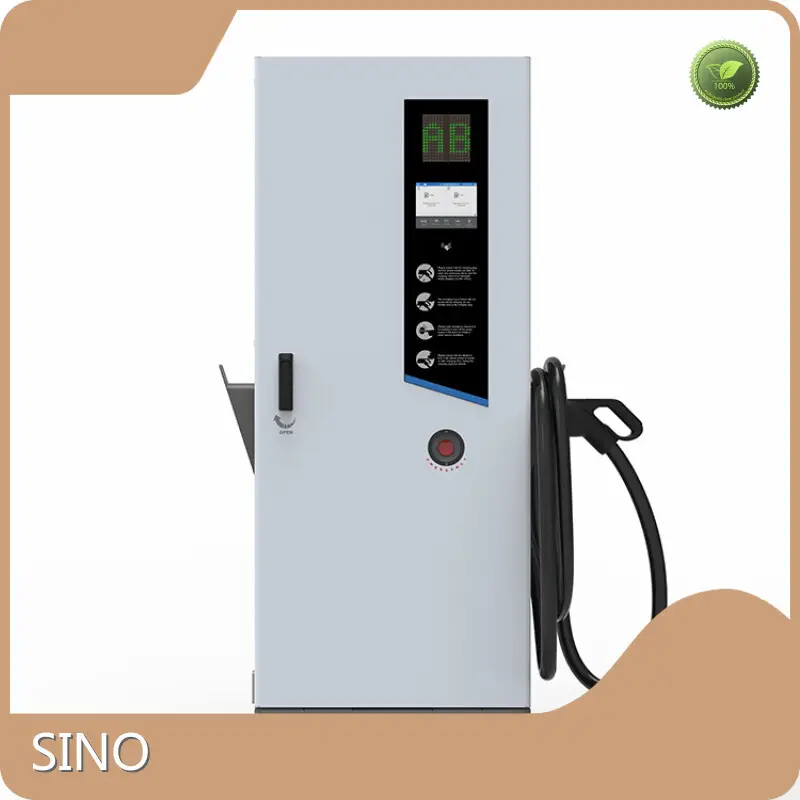

Model PEVC3106E 60kW DC EV Fast Charger Are Ideal For
Product parameter
Electrical Properties | |||||||
Input Voltage | 400Vac ±10% | ||||||
Output Voltage | 150Vdc - 1000Vdc | ||||||
Max. Output Current | 200A(250A Optional) | ||||||
Rated Power | 60kW | ||||||
User Interface & Control | |||||||
LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
Communication | |||||||
Backend | Ethernet ( 4G Optional ) | ||||||
Charging Protocol | ISO 15118 , DIN 70121 | ||||||
Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
Protection | |||||||
Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
Mechanical & Packing | |||||||
IP, IK Level | IP54, IK10 | ||||||
Product Dimension | 700mm*240mm*1750mm( W*D*H ) | ||||||
Package Dimension | 1100mm*750mm*1890mm( W*D*H ) | ||||||
Weight | 220kg( Net ) / 230kg( Gross ) | ||||||
Certifications & Standard | |||||||
Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
Certificate | CE |
Company Advantages
· Raw materials of dc ev charger supplier meet the EU safety and environmental protection standards.
· The product has been tested on various quality parameters and been approved to be excellent in many respects such as performance, durability, etc.
· Being highly commented by customers, SINO will strive to provide the best service for customers.
Company Features
· SINO is a competitive supplier who specializes in producing dc ev charger supplier.
· ZhuHai SINO energy technology Co.ltd has integrated strong manufacturing capability.
· SINO emphasizes cultivating and exploring talents, considering talents as the wealth of the company. Ask online!
Application of the Product
SINO's dc ev charger supplier is widely used in many industries.
SINO is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.
