SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Creative Ev Charging Stations Price List
Product details of the ev charging stations
Quick Overview
ev charging stations has scientific conception and reasonable structure. The product has been recognized internationally for its performance and quality. The ev charging stations produced by our company can be used in many fields. ZhuHai SINO energy technology Co.ltd can make a guarantee for the quality of ev charging stations.
Product Information
The ev charging stations produced by SINO are of superior quality, and the specific details are as follows.
Future Smart Charging Network
Our charging stations not only support conventional charging methods but also smart charging management to improve charging efficiency, save energy costs and boosting revenue for businesses. It was integrated with OCPP 1.6J smart system and communicate by WI-FI, 4G, Ethernet to monitor all communication data in the charging process, realize smart charging and easy maintenance. The user-friendly LCD display, ensures easy activation through Plug & Play, mobile App, or RFID card, perfectly tailored to meet commercial charging needs, Energize Your Charging convenience
Private and commercial operation of EV charging stations
The Wall Mounted EV Charger with OCPP function is a versatile electric vehicle charging device designed for commercial and public charging applications. Its main feature is the OCPP (Open Charge Point Protocol) function, which enables it to integrate with multiple backend management systems and charge point operators. It normally supports most of electric vehicles with plug connector IEC 62195-2 (Type 2) and J1772 type 1.These chargers offer higher power, reducing charging times and ensuring your vehicle is quickly charged.
Main Features
Product display

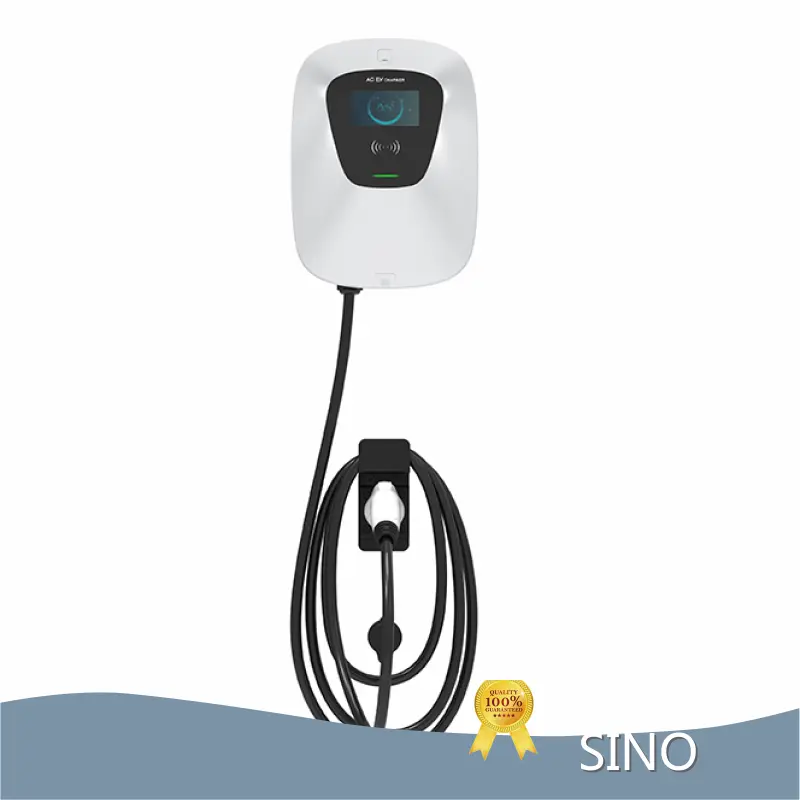

Model PEVC2107 AC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% or 400Vac±10% | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% or 400Vac±10% | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW / 11kW / 22kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color TouchScreen( Optional ) | ||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth / Wi-Fi (4G / Ethernet Optional ) | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 270mm*135mm*365mm( W*D*H ) | ||||||
| Package Dimension | 330mm*274mm*500mm( W*D*H ) | ||||||
| Weight | 5.6kg( Net ) / 7.2kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | TUV, CE | ||||||
Company Introduction
ZhuHai SINO energy technology Co.ltd is an enterprise mainly producing AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories, and is now located in We are willing to provide intimate services for consumers with high quality, flexible and adaptable service mode. Welcome new and old customers to negotiate business.
Add.: Building A10, No.81 Dingye Road, Gaoxin District, Zhuhai, GuangDong, China
Email: info@sinoevsetech.com
Phone: 0086 756 6931888
WhatsApp/Wechat: +86 13554922072
