SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Creative Electric Vehicle Charger From China for Public Charging
Company Advantages
· Our production technology of SINO electric vehicle charger is ahead in the industry.
· As our professional QC staff have tracked the quality throughout the whole production, this product is guaranteed to be zero-defect.
· With precise strategic positioning and excellent implementation efficiency, ZhuHai SINO energy technology Co.ltd has achieved sustained high-speed growth.
Fast Charging, Cost Saving.
DC Charger PEVC3108 delivering lightning-fast charging speeds ranging from 120kW-240kW with the capability of Simultaneously charging to two vehicles at the same time. it was designed for high-powered performance which keeps electric vehicles on the road in no time. Modular design of the EV charging stations realize Easy Maintenance during the public operation
High Intelligence, Smart management.
PEVC3108E DC electric vehicle charger is a high-power DC ultra-fast EV Charger. Certified by OCPP, TUV, and CE, and EMI compliant with Class B, it offers a reliable and efficient charging experience for your EV. This EV chargers optimize energy management across complex charging and commercial operations. The feature leverages the station sophisticated controls and communication abilities like OCPP 1.6J to remotely facilitate uninterrupted high-demand charging.
Main Features
Product display

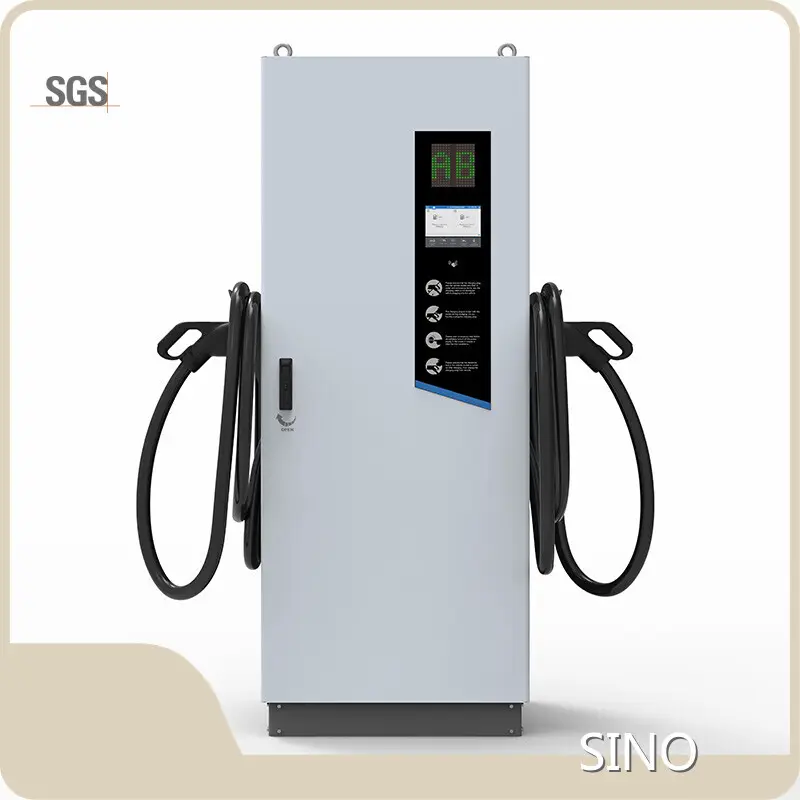

Model PEVC3108 120kW-240kW DC EV Fast Charger Are Ideal For Charger point operators
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 200A（250A Optional） | ||||||
| Rated Power | 120kW - 240kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 750mm*750mm*1900mm( W*D*H ) | ||||||
| Package Dimension | 1000mm*920mm*2050mm( W*D*H ) | ||||||
| Weight | 411kg( Net ) / 428kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | TUV, CE, CB | ||||||
Company Features
· ZhuHai SINO energy technology Co.ltd is an integrated manufacturer specializing in the research and development, design, production, and sales of electric vehicle charger.
· High standard quality management system is the quality assurance of electric vehicle charger.
· Getting high reputation is the continuous goal of ZhuHai SINO energy technology Co.ltd. Inquire now!
Product Details
With a focus on every detail of electric vehicle charger, we strive to create high-quality products.
Product Comparison
Compared with other products in the same category, electric vehicle charger has more advantages, specifically in the following aspects.
