SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Cost-Effective Ev Charging Systems Manufacturer for Home Charging
Product details of the ev charging systems
Product Information
SINO ev charging systems is manufactured by our competent workforce utilizing well-tested material and sophisticated technology following the set norms of the industry. It is not known that ev charging systems from ZhuHai SINO energy technology Co.ltd have exceeded the performance and quality of many big names. With years of producing ev charging systems, SINO has its own technology to develop new products.
Safe & High Compatible EV chargers
The DC Chargers is compatible with all types of Electric Vehicles currently on the market. it has a multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
Cost-effective, Smart management
Designed for optimal performance and cost savings. With its intelligent features, The DC EV fast charging station can seamlessly integrate with smart grids, load balancing, and remote monitoring capabilities, enable seamless remote operation and maintenance, reducing manpower costs.
Main Features
Product display

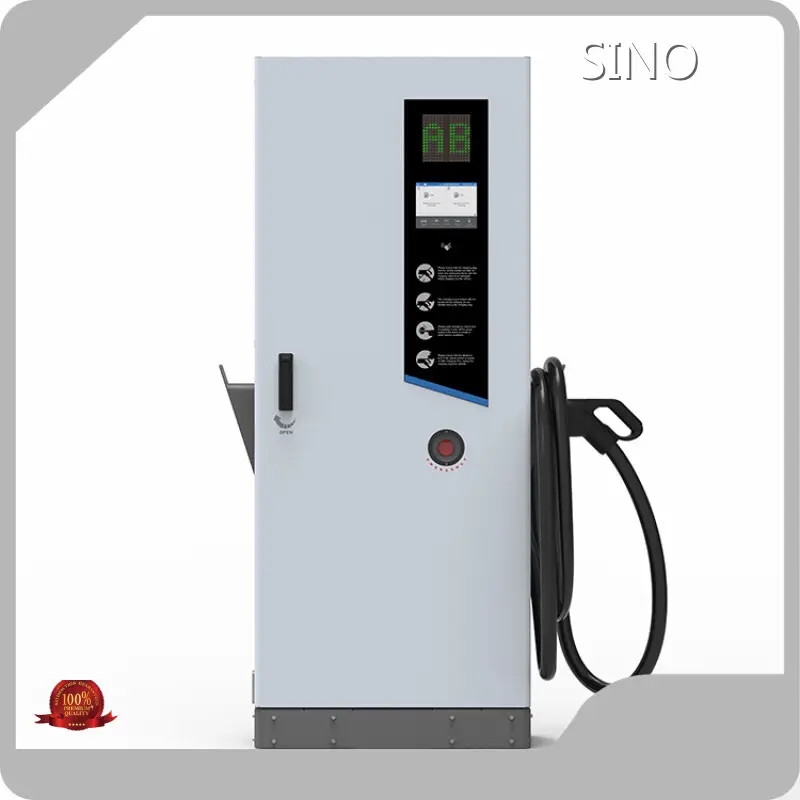

Model PEVC3106E 60kW DC EV Fast Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 200A（250A Optional） | ||||||
| Rated Power | 60kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 700mm*240mm*1750mm( W*D*H ) | ||||||
| Package Dimension | 1100mm*750mm*1890mm( W*D*H ) | ||||||
| Weight | 220kg( Net ) / 230kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
Company Feature
• SINO's location has unique geographical advantages, complete supporting facilities, and traffic convenience.
• In recent years, SINO has continuously optimized the export environment and has striven to expanded export channels. Besides, we have actively opened up the foreign market to change the simplex situation of the sales market. All these contribute to the increment of market share in the international market.
• Our company has our own research and development and production testing team. The team members have decades of industry experience and can meet the customer's requirements.
• Since the establishment in we have developed for years and have gradually become a leader in the industry.
Feel free to contact SINO, and your good suggestions are welcome!
