SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Commercial Dc Fast Charger for Public Charging Series
Product details of the commercial dc fast charger
Quick Detail
The raw materials of SINO commercial dc fast charger undergoes the strict selection, which is conducted by our workers. Through strict quality inspection throughout the process, the product quality is guaranteed to meet industry standards. Various in function and wide in application, the commercial dc fast charger can be used in many industries and fields. Strong technical force facilitates the bulk production of commercial dc fast charger which also ensures the high business efficiency.
Product Description
The quality of SINO's commercial dc fast charger is better than the quality of its peer products. It is shown in the following aspects.
Fast Charging, Cost Saving.

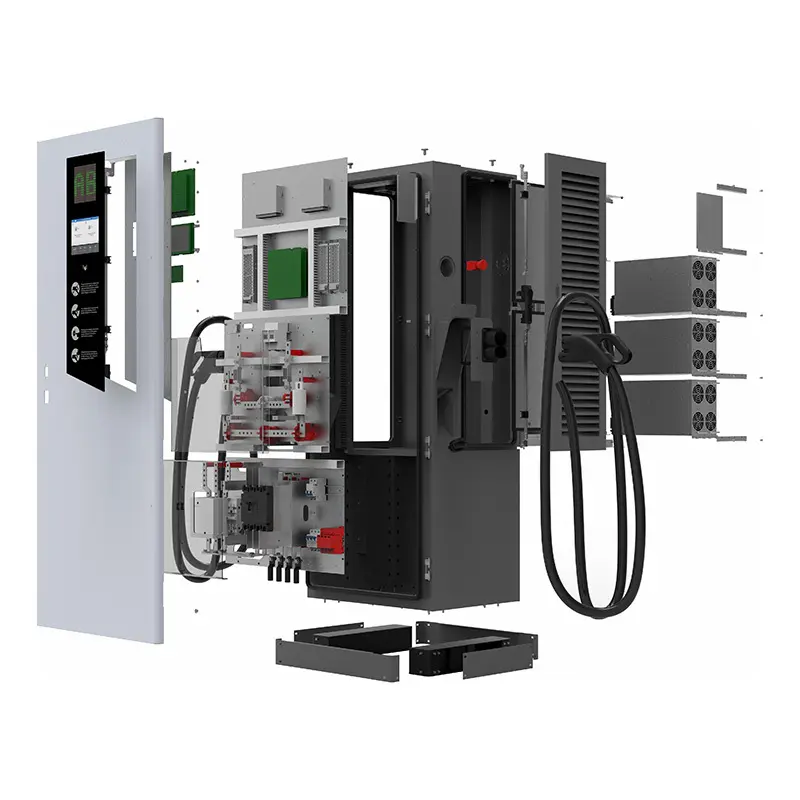

DC Charger PEVC3108 delivering lightning-fast charging speeds ranging from 120kW-240kW with the capability of Simultaneously charging to two vehicles at the same time. it was designed for high-powered performance which keeps electric vehicles on the road in no time. Modular design of the EV charging stations realize Easy Maintenance during the public operation
High Intelligence, Smart management.
PEVC3108E DC electric vehicle charger is a high-power DC ultra-fast EV Charger. Certified by OCPP, TUV, and CE, and EMI compliant with Class B, it offers a reliable and efficient charging experience for your EV. This EV chargers optimize energy management across complex charging and commercial operations. The feature leverages the station sophisticated controls and communication abilities like OCPP 1.6J to remotely facilitate uninterrupted high-demand charging.
Main Features

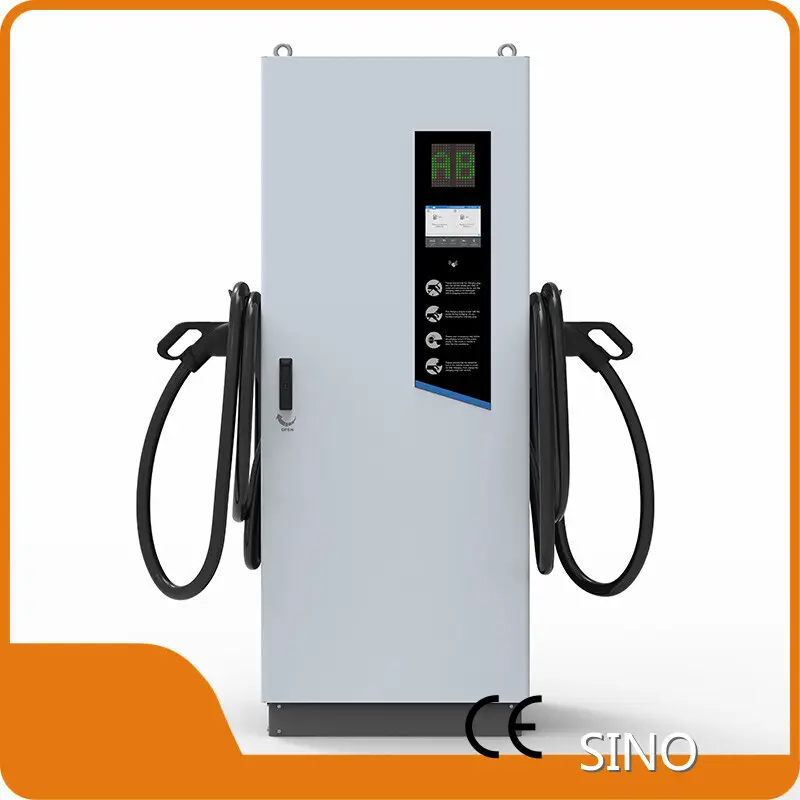

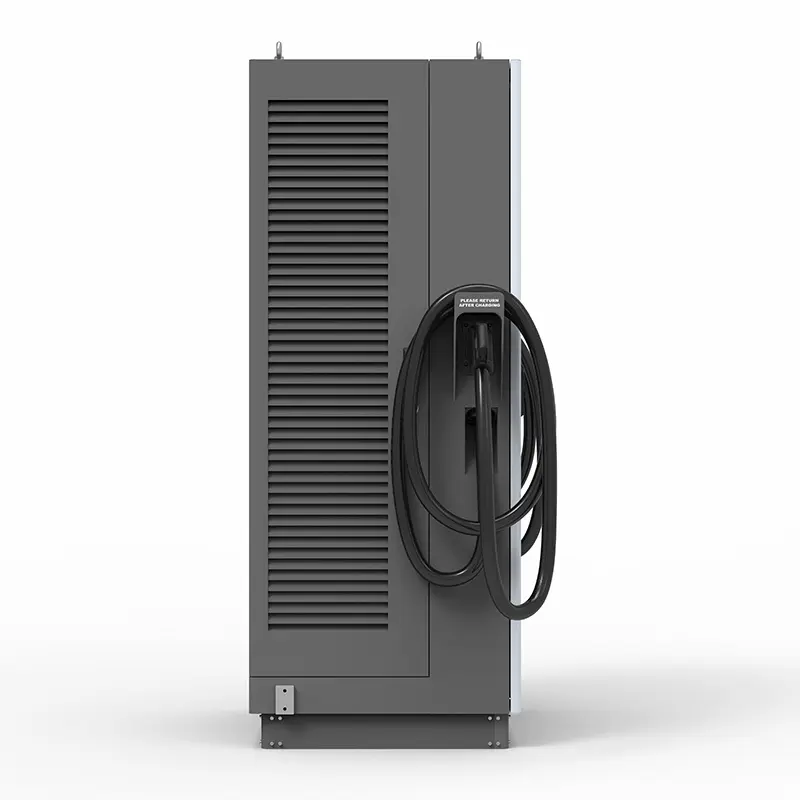

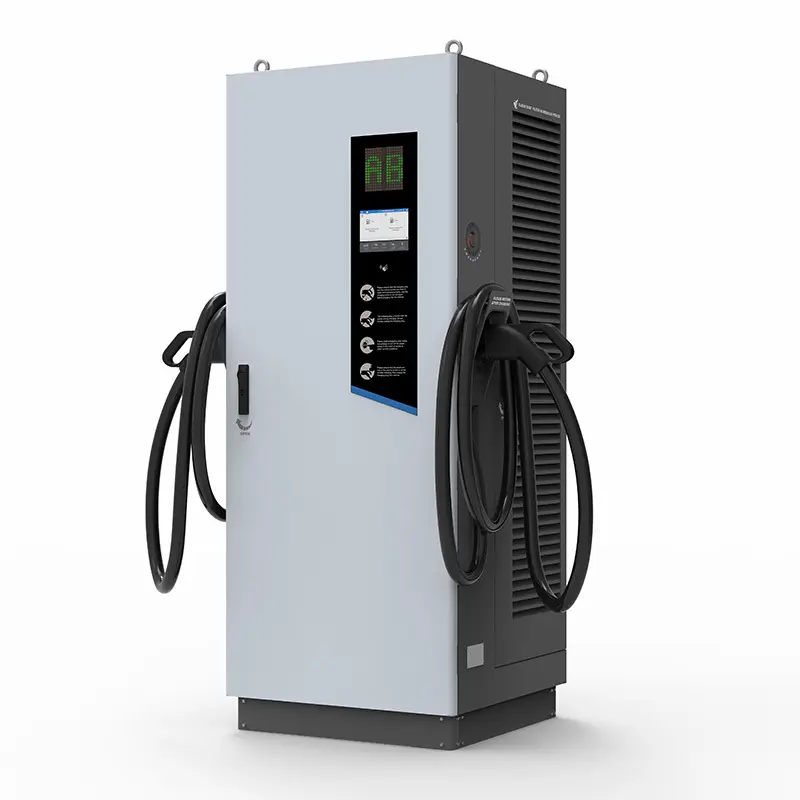

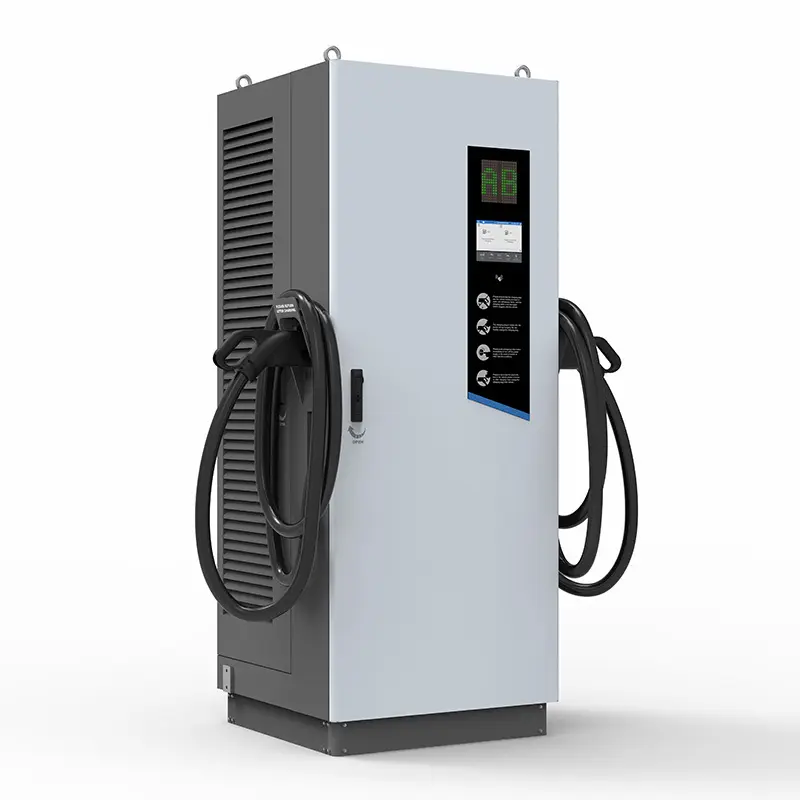

Product display
Model PEVC3108 120kW-240kW DC EV Fast Charger Are Ideal For Charger point operators
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 200A（250A Optional） | ||||||
| Rated Power | 120kW - 240kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 7" Color TouchScreen( 12" Customization ) | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec- tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 750mm*750mm*1900mm( W*D*H ) | ||||||
| Package Dimension | 1000mm*920mm*2050mm( W*D*H ) | ||||||
| Weight | 411kg( Net ) / 428kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | TUV, CE, CB | ||||||
Company Information
ZhuHai SINO energy technology Co.ltd is a well-known Chinese manufacturer. We provide professional products such as commercial dc fast charger based on our solid experience. Our Senior Management Team is responsible for the strategic direction of our company. They have extensive experience within their disciplines and are capable of improving the overall operational efficiency. ZhuHai SINO energy technology Co.ltd always conducts business in a responsible manner. Contact!
Sincerely welcome customers who have needs to contact us for negotiation. I hope we can work together to create a brilliant future.
Add.: Building A10, No.81 Dingye Road, Gaoxin District, Zhuhai, GuangDong, China
Email: info@sinoevsetech.com
Phone: 0086 756 6931888
WhatsApp/Wechat: +86 13554922072
