Charging Station for Public Charging Supplier
Product details of the charging station
Quick Overview
SINO charging station is designed using top class material and advanced tools & equipment under the guidance of highly skilled designers. This product strictly complies with performance requirements. The charging station produced by SINO is widely used in industry. SINO has realized that it must enhance its brand honor.
Product Description
The charging station produced by our company have superior quality, and the specific details of products are presented in the following section.
HIGH COMPATIABLE AND SAFE EV CHARGING STATIONS
Compliant with OCPP Json1.6, global safety standards, CE, and RoHS certified.The product has multiple protection design and active protective function, which can monitor all communication data in the charging process and give early warning to all kinds of abnormal charging, to ensure the safety of users and vehicles.
FAST AND EFFICIENT EV CHARGING STATION

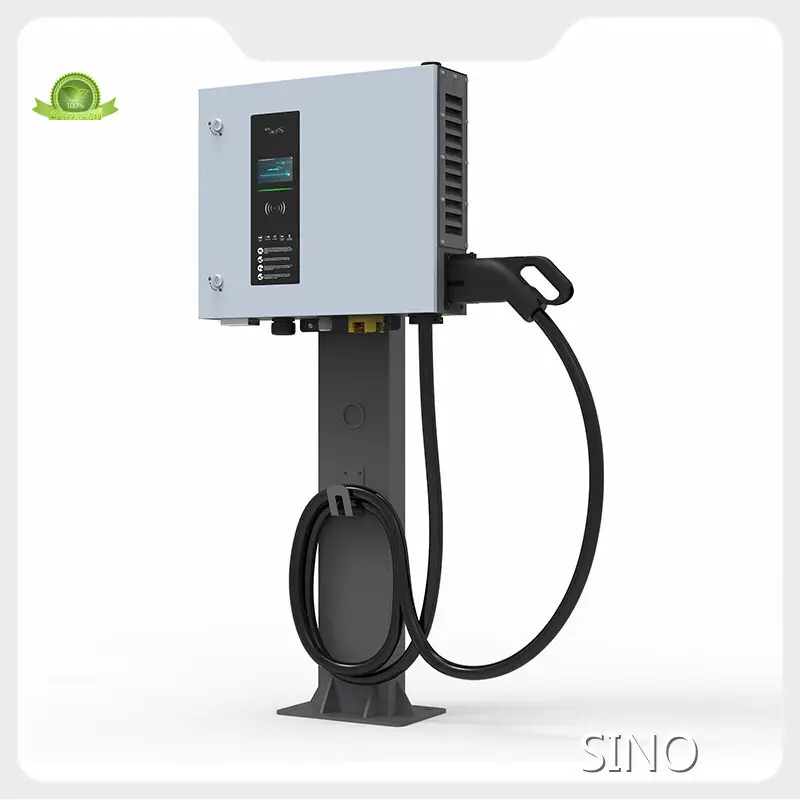

PEVC3401 30KW DC EV charging station has more powerful data calculation and processing capacity, smarter dispatching strategy, better heat dissipation performance and lower noise, and fully meets the requirements of high-power DC charging of vehicles with global standard DC interface
Main Features
Product display
Our PEVC3401 30KW DC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% | ||||||
| Output Voltage | 150Vdc - 1000Vdc | ||||||
| Max. Output Current | 100A( 125A CHAdeMO ) | ||||||
| Rated Power | 30kW | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color Touch Screen | ||||||
| User Authentication | Plug & Play / RFID / APP/ Credit Card Customization | ||||||
| Charger Connector | CCS2 ( CCS1 / CHAdeMO Optional ) | ||||||
| Communication | |||||||
| Backend | Ethernet / Bluetooth / Wi-Fi ( 4G Optional ) | ||||||
| Charging Protocol | ISO 15118 , DIN 70121 | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Electrical Protection |
Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over/Under Temperature Protection, Lightning Protection, Ground Fault,Surge Protection |
||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP54, IK10 | ||||||
| Product Dimension | 640mm*160mm*550mm( W*D*H ) | ||||||
| Package Dimension | 808mm*438mm*748mm( W*D*H ) | ||||||
| Weight | 80kg( Net ) / 85.7kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | IEC62196-1, IEC62196-3, IEC 61851-1, IEC61851-23, IEC61851-24 | ||||||
| Certificate | CE | ||||||
Company Information
Lying in ZhuHai SINO energy technology Co.ltd, short for SINO, is mainly engaged in the business of AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories. Our company adheres to the 'quality first, pursuit of excellence, steady development' as our business philosophy, and we carry forward the spirit of enterprise of 'being honest and trustworthy, treating people with sincere, cooperating for mutual benefit'. We strictly control our product quality, and strive to build a first-class brand. We are committed to becoming industry leader, based on the principle of customers-centric. SINO has experienced R&D, production and testing teams, which can meet the requirements of customers. From the customer's point of view, we provide our customers with a complete, fast, efficient and feasible solution to solve their problems.
If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.
Add.: Building A10, No.81 Dingye Road, Gaoxin District, Zhuhai, GuangDong, China
Email: info@sinoevsetech.com
Phone: 0086 756 6931888
WhatsApp/Wechat: +86 13554922072
