SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Charging Station for Public Charging Made in China
Product details of the charging station
Product Description
SINO charging station is available in varied designs and patterns. This product is thoroughly tested on various stages by our quality controllers as per the set industrial norms. As a famous enterprise, charging station are produced with high quality.

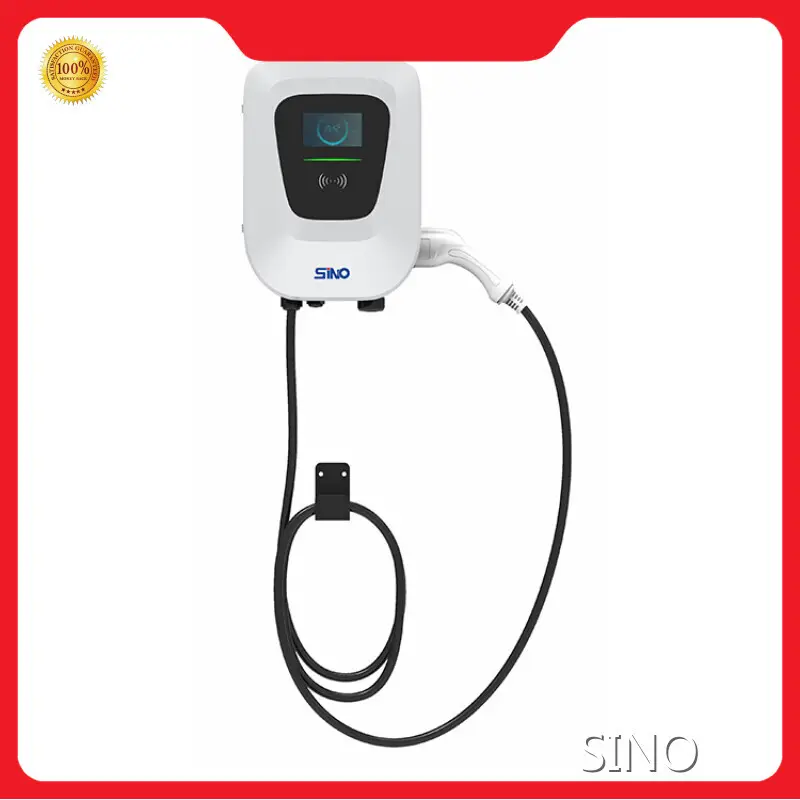

Business Wallbox EV Charger
AC EV Charger Business Wallbox prioritizes safety and efficiency, complying with EU standards and Attained certifications of CE, TUV. The MID certified energy meter guarantees the utmost accuracy in your charging experience. It seamlessly integrates to OCPP 1.6J, communicate with cloud platform via WI-FI, Ethernet,4G, enables it to communicate with other EV charging networks and backend management systems, allowing for centralized remote management and monitoring, effortlessly manage your charging and maintenance the stations remotely.
Smart Charging Network
A charger comes with high-integrated smart board and communication function, the wallbox designed meet IP65, can be used indoor and outdoor. Every AC charger for EVs comprises top-notch intelligent charging technology for both stability and reliability. It supports multiple payment options, including RFID authentication, credit card payments, and mobile payments, making it accessible to a wide range of users. It also supports OCPP 1.6J smart functions, allows charge point operators and EV fleet managers to easily manage and monitor their charging infrastructure, regardless of location or type of charger, It enables them to remotely configure and manage the charging settings, monitor usage and performance, and receive real-time notifications of any issues or system malfunctions.
Main Features
Product display
Model PEVC2201 AC EV Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 400Vac ±10% （230Vac±10% Optional ） | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 400Vac ±10% （230Vac±10% Optional ） | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 11kW - 22kW (3.7kW - 7.4kW Optional) | ||||||
| User Interface & Control | |||||||
| LCD Display | 4.3" Color TouchScreen( Optional ) | ||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | MID Meter | ||||||
| Communication | |||||||
| Backend | Bluetooth / Wi-Fi / Ethernet (4G Optional ) | ||||||
| Backend Protocol | OCPP 1.6 J (OCPP2.x Coming soon) | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, Surge Protection | ||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 300mm*154mm*420mm( W*D*H ) | ||||||
| Package Dimension | 395mm*285mm*500mm( W*D*H ) | ||||||
| Weight | 5.9kg( Net ) / 7.7kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | TUV, CE | ||||||
Company Feature
• SINO's products occupy a certain market share in the country. They are also exported to many foreign countries.
• SINO has a comprehensive pre-sales and after-sales service system. We are capable of providing efficient and quality services.
• Good natural conditions and developed transportation network lay a good foundation for SINO's development.
Dear customer, welcome to visit our site! If you are interested in SINO's AC EV Chargers,DC EV Chargers,Split DC Fast Chargers,Charging Accessories, please leave your contact information. We will contact you as soon as possible.
