SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
Ac Fast Charger for Ev Factory Price
Company Advantages
· Latest machining techniques are used in manufacturing SINO ac fast charger for ev.
· Our quality management system ensures that our products meet international quality standards.
· ZhuHai SINO energy technology Co.ltd has strong technical expertise and has a unchanged commitment to elaborate manufacture and constant innovation.
AC EV charging from 3kW to 22 kW for residential
SINO Energy offers a variety of AC chargers with power ratings of 3.7 kW to 22 kW designed for residential application. It supports type 1/ type 2/ GB/T plug and can be installed by wall-mounting and floor-mounting, can be easy controlled by plug & Charge/RFID/APP. Having a home EV charger allows you to charge your electric vehicle overnight or in most convenient without waiting in line from public charging stations.
Charging Your Electric Vehicle at Home
The wall-mounted EV Charger stations are most used in private homes; you can park your car at the garage and manage the charging status with a dedicated application. Once you have connected, the wall-mounted EV charger will charge the car ideally, safely, and in a short time. Home charging station provides convenience, cost savings, and eliminates the need to constantly search for public charging stations
Main Features

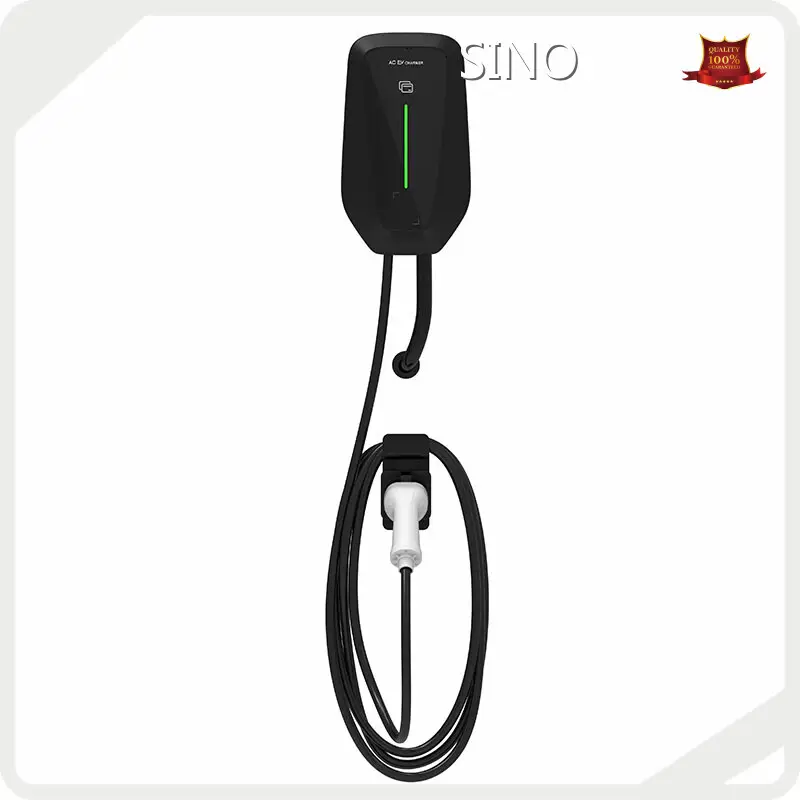

Product display
Model PEVC2108 AC EV Home Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW (11kW - 22kW Optional) | ||||||
| User Interface & Control | |||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, SurgeProtection | ||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 208mm*358mm*102mm( W*D*H ) | ||||||
| Package Dimension | 270mm*420mm*220mm( W*D*H ) | ||||||
| Weight | 3.3kg( Net ) / 4kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | CE | ||||||
Company Features
· ZhuHai SINO energy technology Co.ltd, embracing abundant experience in manufacturing ac fast charger for ev, has been evolved into one of the best competitive companies.
· ZhuHai SINO energy technology Co.ltd achieves R&D progresses annually. ZhuHai SINO energy technology Co.ltd is equipped with a key lab for theoretical research and technical innovation.
· To provide the finest ac fast charger for ev to satisfy each customer is our persistent enterprise culture. Please contact us!
Product Details
Our company starts from the whole and excels in detail in the production of ac fast charger for ev. So our products have better performance in the following aspects.
Application of the Product
The ac fast charger for ev developed by our company can be applied in different fields.
SINO is dedicated to providing professional, efficient and economical solutions for customers, so as to meet customers' needs to the greatest extent.
