SINO-Professional OEM/ODM/SKD EV Charging Solution Provider More Than 16 Years.
7kw Ac Charger Supply for Public Charging
AC EV charging from 3kW to 22 kW for residential
SINO Energy offers a variety of AC chargers with power ratings of 3.7 kW to 22 kW designed for residential application. It supports type 1/ type 2/ GB/T plug and can be installed by wall-mounting and floor-mounting, can be easy controlled by plug & Charge/RFID/APP. Having a home EV charger allows you to charge your electric vehicle overnight or in most convenient without waiting in line from public charging stations.
Charging Your Electric Vehicle at Home
The wall-mounted EV Charger stations are most used in private homes; you can park your car at the garage and manage the charging status with a dedicated application. Once you have connected, the wall-mounted EV charger will charge the car ideally, safely, and in a short time. Home charging station provides convenience, cost savings, and eliminates the need to constantly search for public charging stations
Main Features

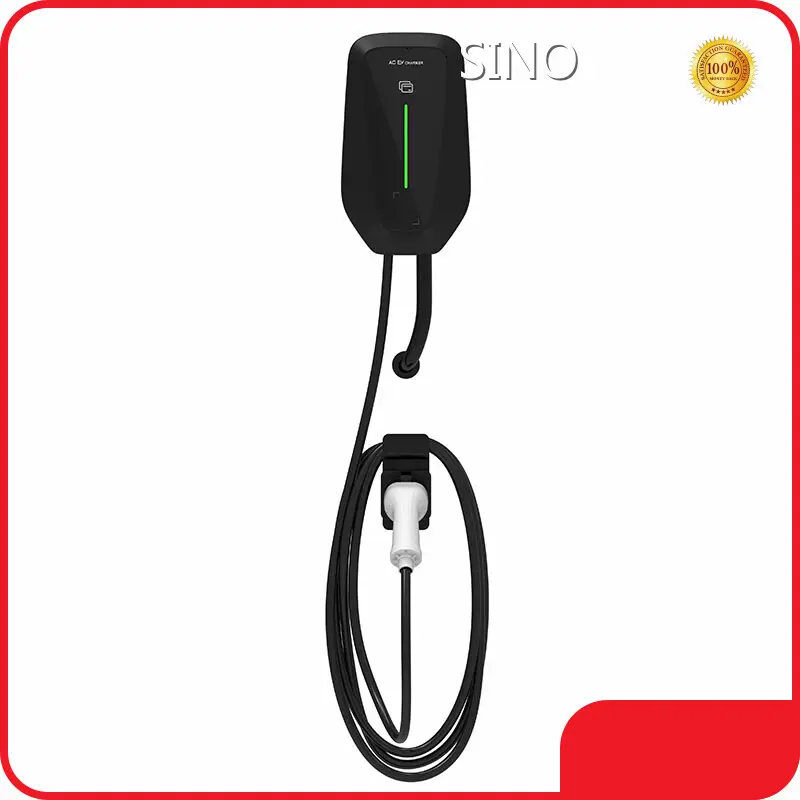

Product display
Model PEVC2108 AC EV Home Charger Are Ideal For
Product parameter
| Electrical Properties | |||||||
| Input Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Input Current | 16A or 32A | ||||||
| Output Voltage | 230Vac ±10% （400Vac±10% Optional ） | ||||||
| Output Current | 16A or 32A | ||||||
| Rated Power | 7.4kW (11kW - 22kW Optional) | ||||||
| User Interface & Control | |||||||
| User Authentication | Plug & Play / RFID / APP | ||||||
| Charger Connector | IEC 62196-2 Type 2 (SAEJ1772 Type 1 Optional) | ||||||
| Energy Measuring | Embedded meter, with 1% accuracy | ||||||
| Communication | |||||||
| Backend | Bluetooth | ||||||
| Protection | |||||||
| Residual Current Protection | Type A 30mA+DC 6mA | ||||||
| Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit Protec-tion, Over Temperature Protection, Lightning Protection, Ground Fault, SurgeProtection | ||||||
| Mechanical & Packing | |||||||
| IP, IK Level | IP55, IK08 | ||||||
| Product Dimension | 208mm*358mm*102mm( W*D*H ) | ||||||
| Package Dimension | 270mm*420mm*220mm( W*D*H ) | ||||||
| Weight | 3.3kg( Net ) / 4kg( Gross ) | ||||||
| Certifications & Standard | |||||||
| Standard | EN 61851-1 2019, IEC 62955 2018, IEC 61008-1 2010, IEC/EN 62196-1 | ||||||
| Certificate | CE | ||||||
Company Advantages
· SINO 7kw ac charger is elaborately designed by professional design team.
· It has been widely recognized that SINO always apply 7kw ac charger to let our customers assured.
· This product has been updated and caters to the market trends in the industry.
Company Features
· ZhuHai SINO energy technology Co.ltd is an international company focused on serving 7kw ac charger markets.
· We develop, produce and distribute our products in-house, using the latest technology and the highest quality standards to provide finished and ready-to-commodify products including 7kw ac charger to our global partners.
· Our company is striving for green manufacturing. We choose materials carefully to ensure minimum indoor air emissions and maximize customers' ability to return materials to the resource stream once they have served their intended purpose.
Application of the Product
SINO's 7kw ac charger can be applied to different fields and scenes, which enables us to meet different requirements.
SINO insists on providing customers with comprehensive solutions based on their actual needs, so as to help them achieve long-term success.
